About the product

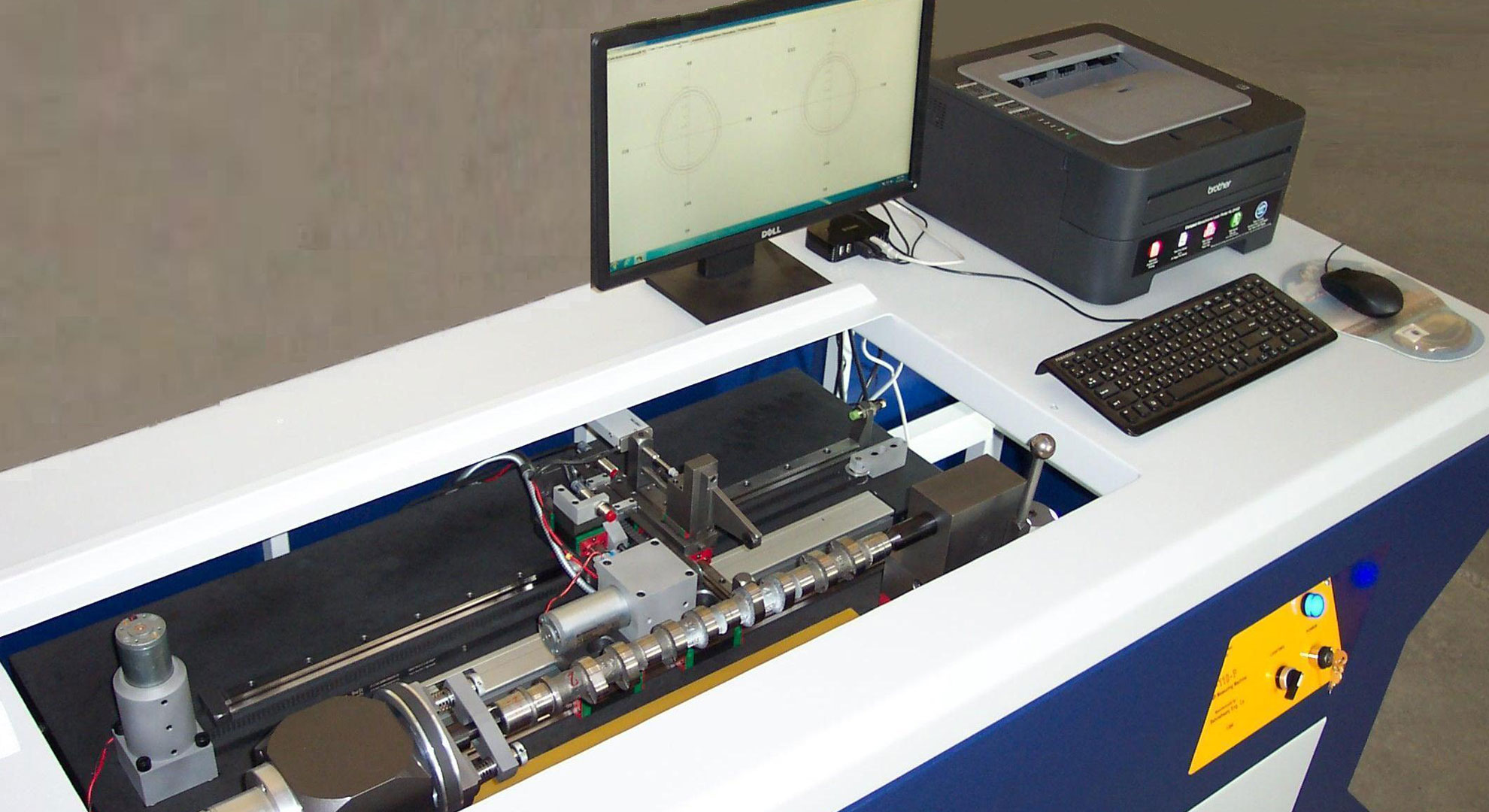

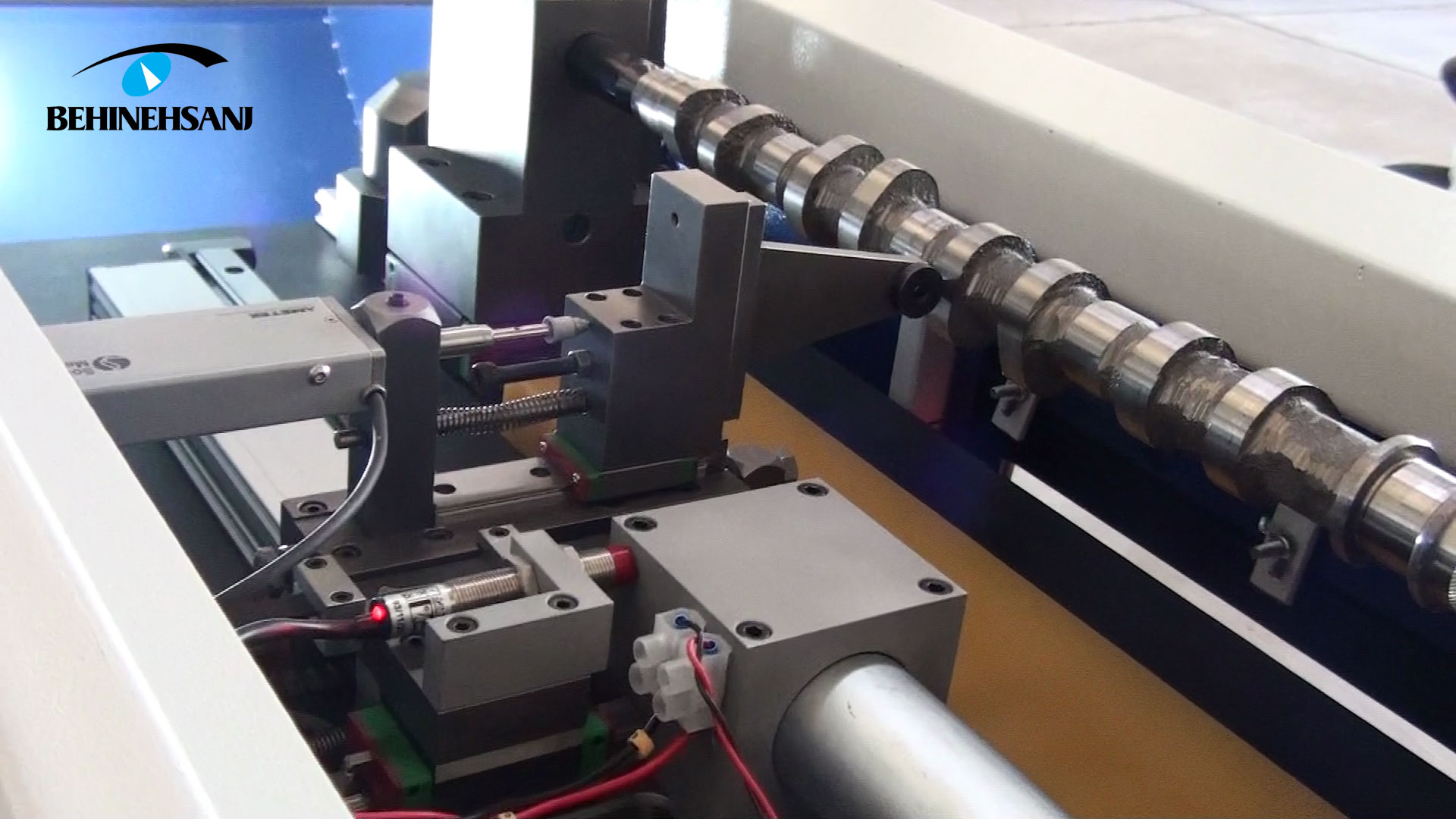

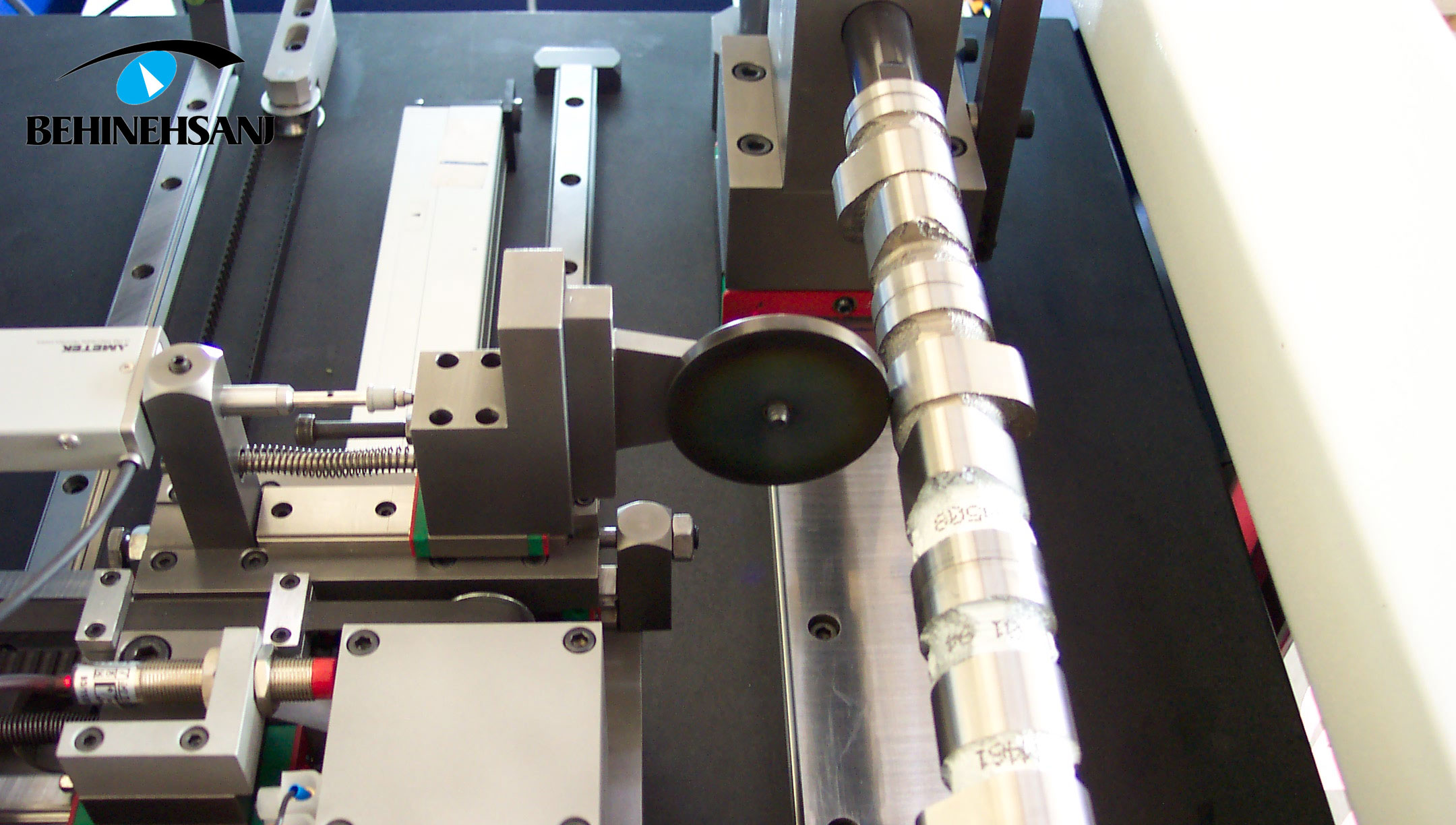

This machine is designed and manufactured as a lab device for analysis of camshaft and plots the cam profiles together with other camshaft measures such as journal diameters, runouts, cam heights, cam lifts and base circle dimensions. An ultra high precise linear encoder scans the journals and cams in less than 6Sec and all of measures and cam profiles are displayed on the monitor
Technical Specifications:

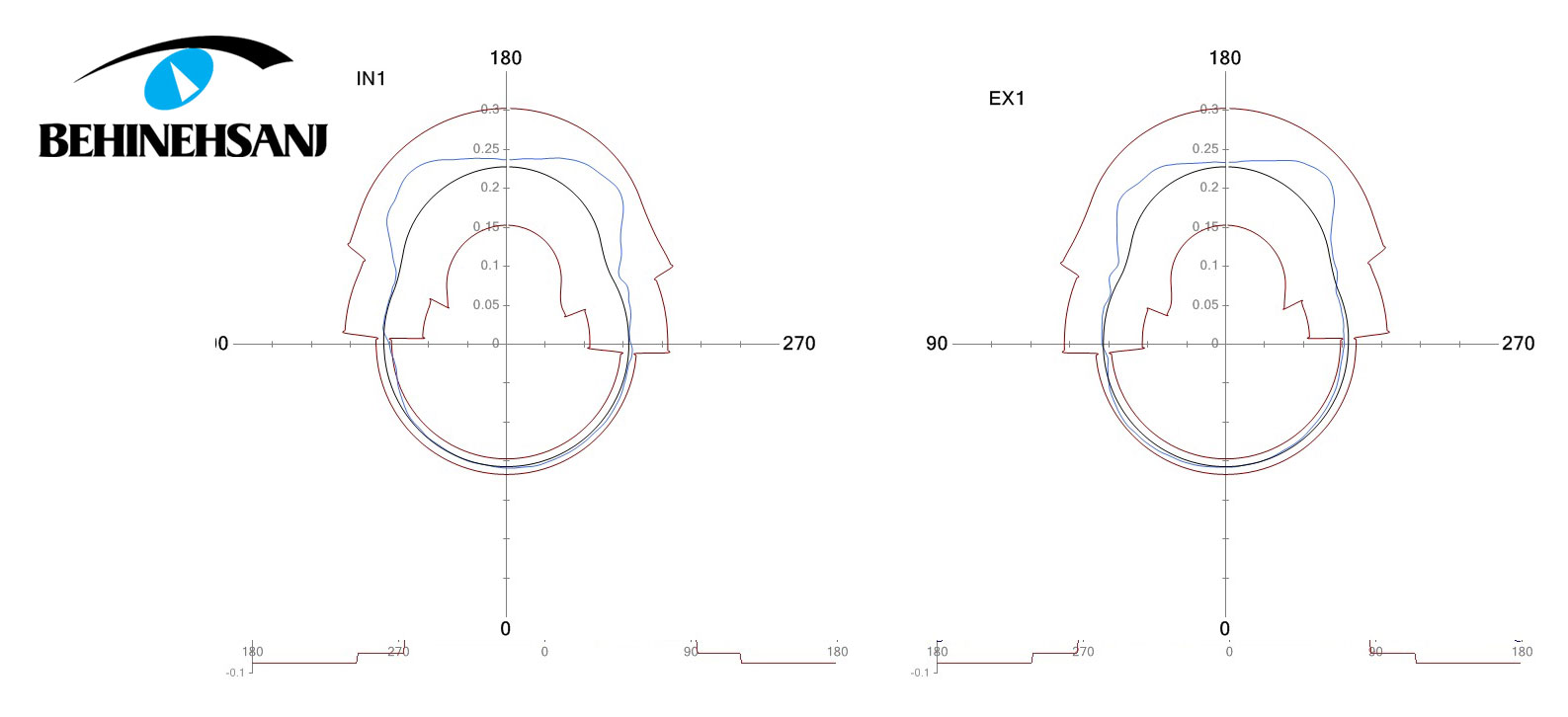

- To plot the cam profiles

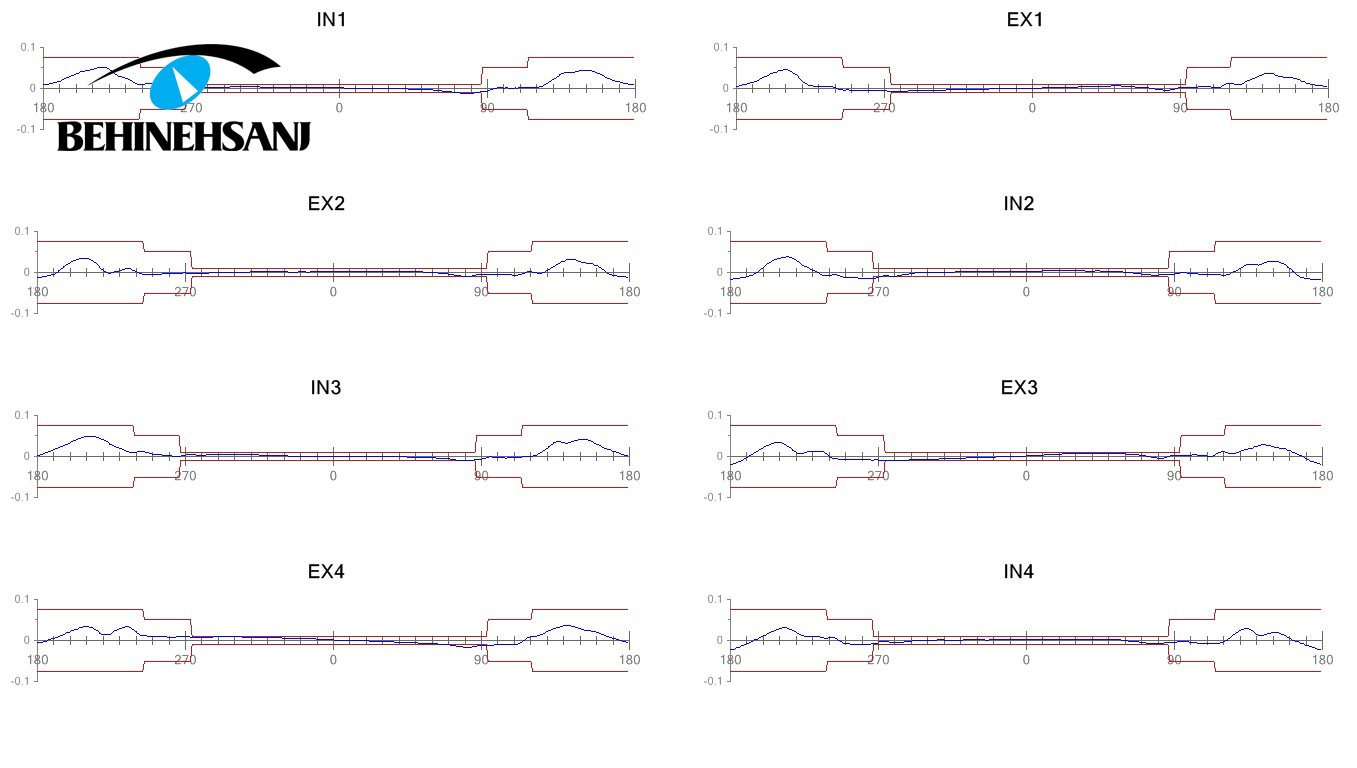

- To plot the velocity and acceleration charts

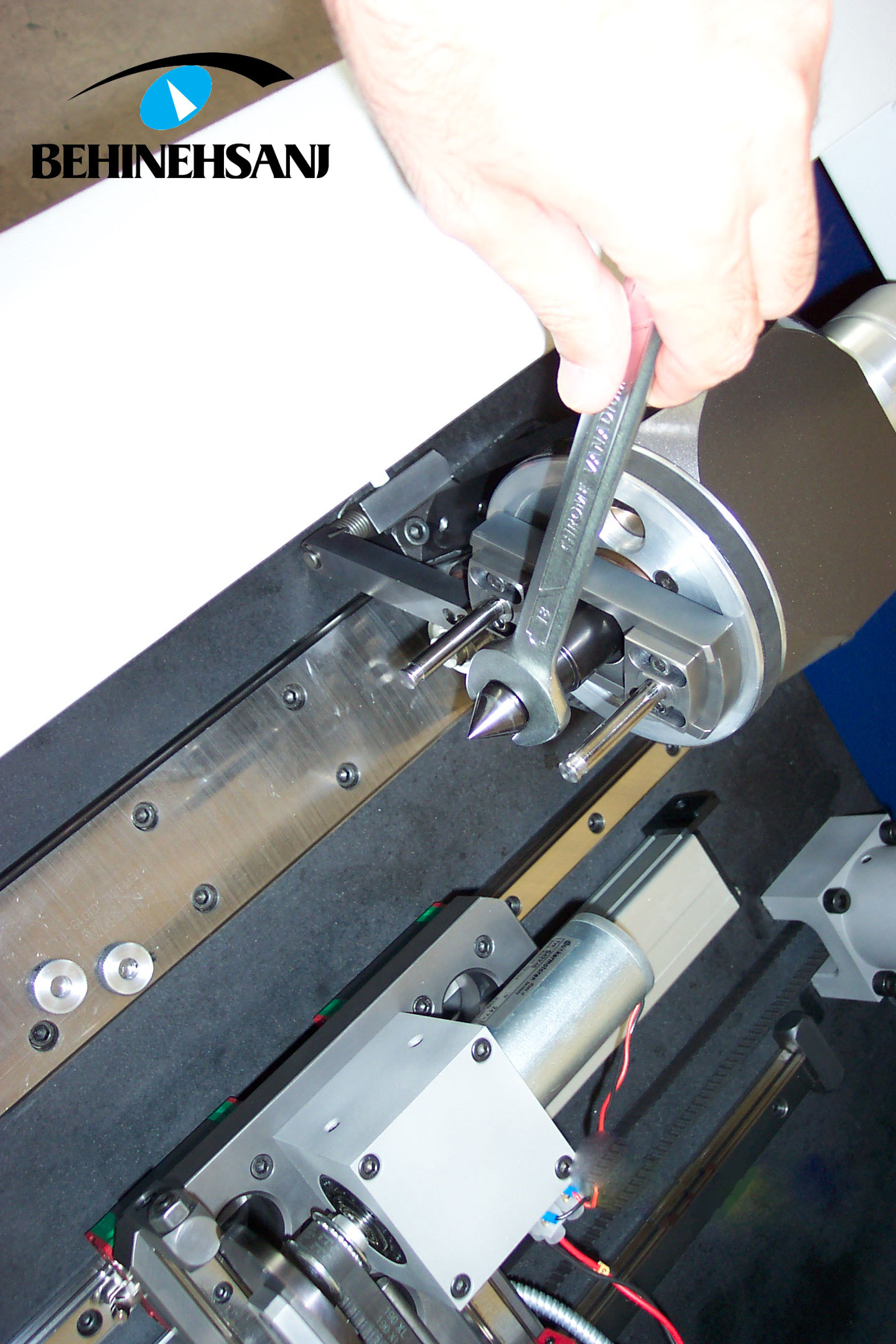

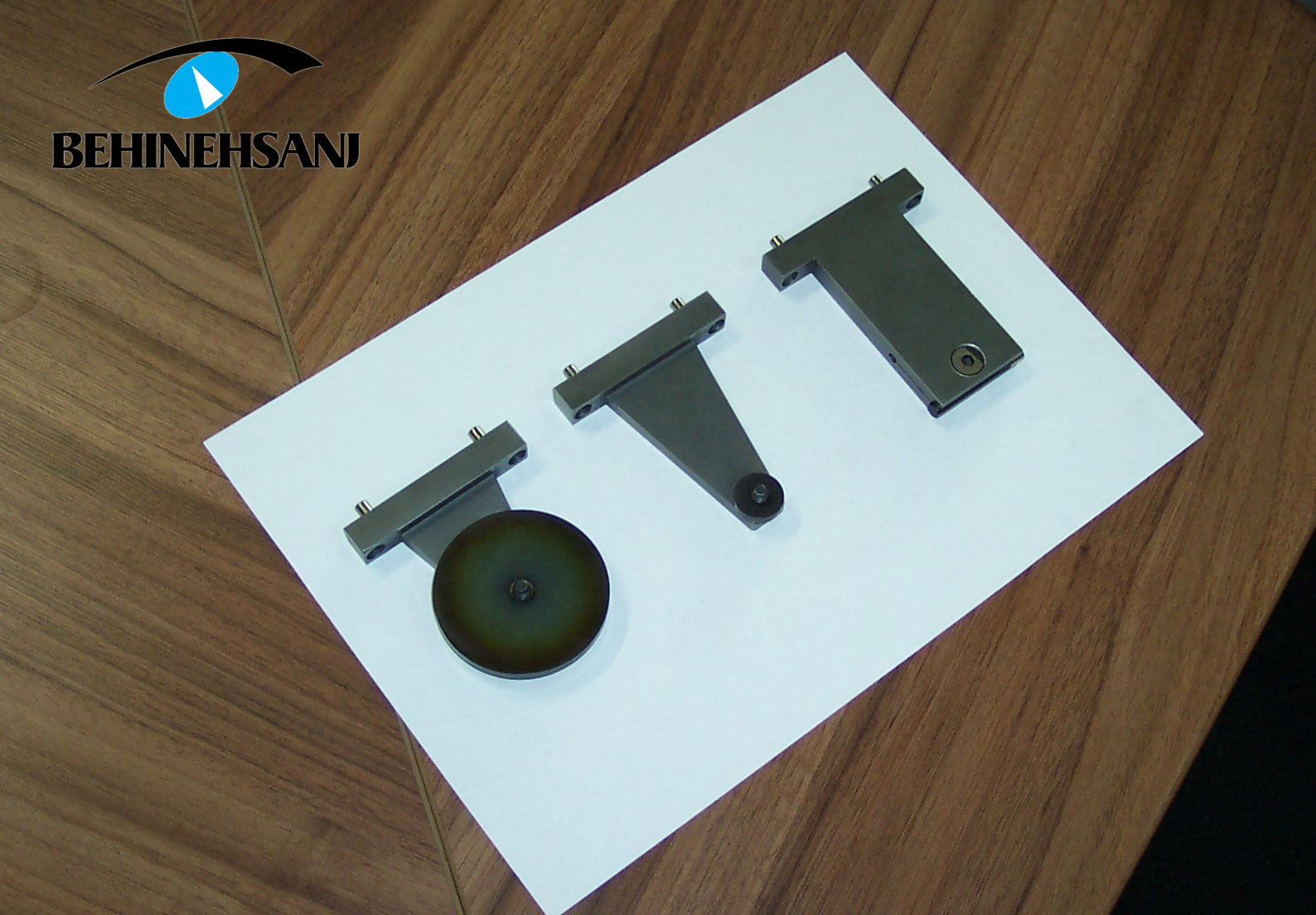

- Easy configurable for several kinds of camshafts, both in fixture and software
- Cycle time is about 6 minutes/part
- Degree resolution less than 0.005°
- Three axis controlled: X,Y, θ
- Measuring range: diameter up to 50mm, length up to 480mm
