About the product

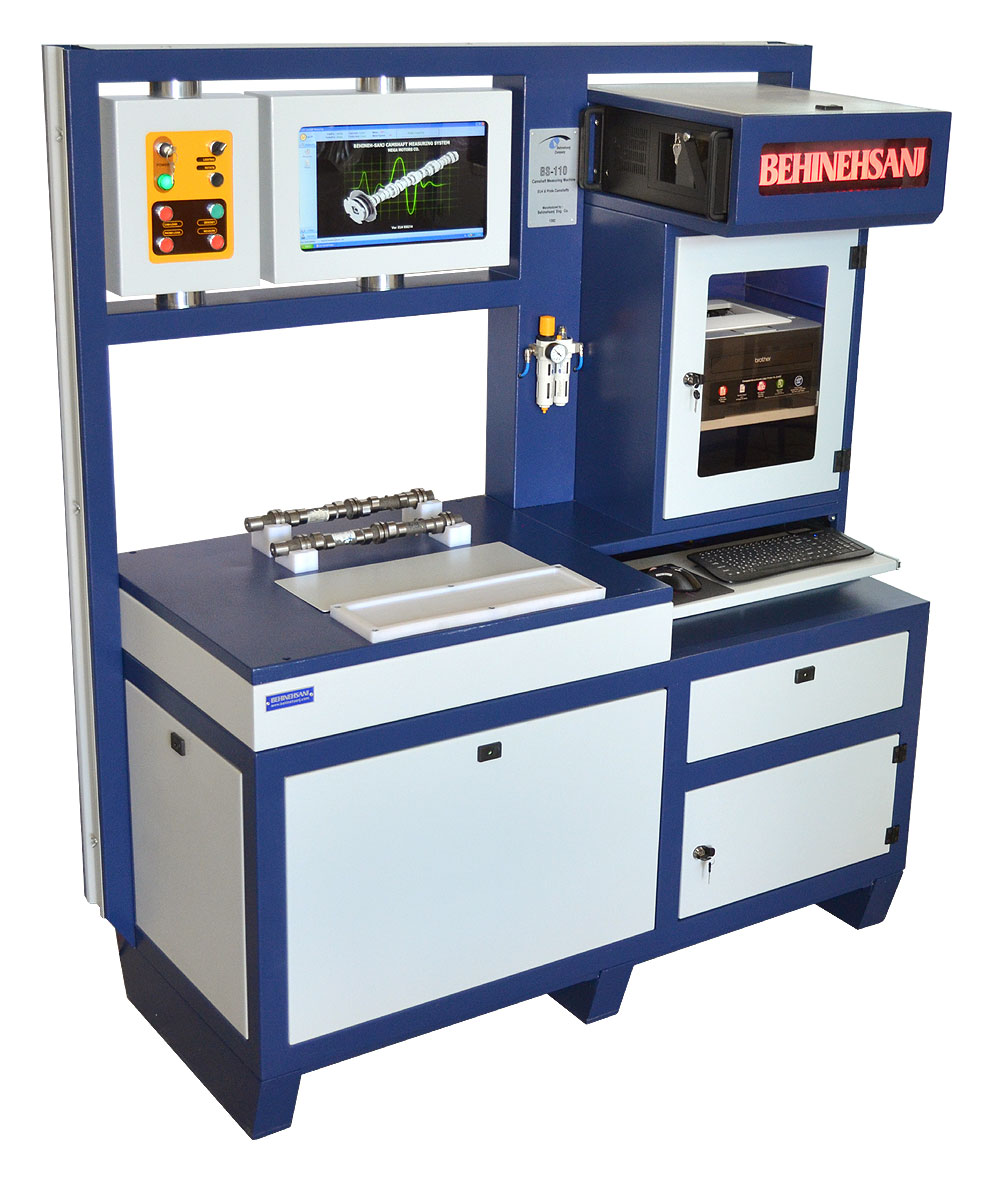

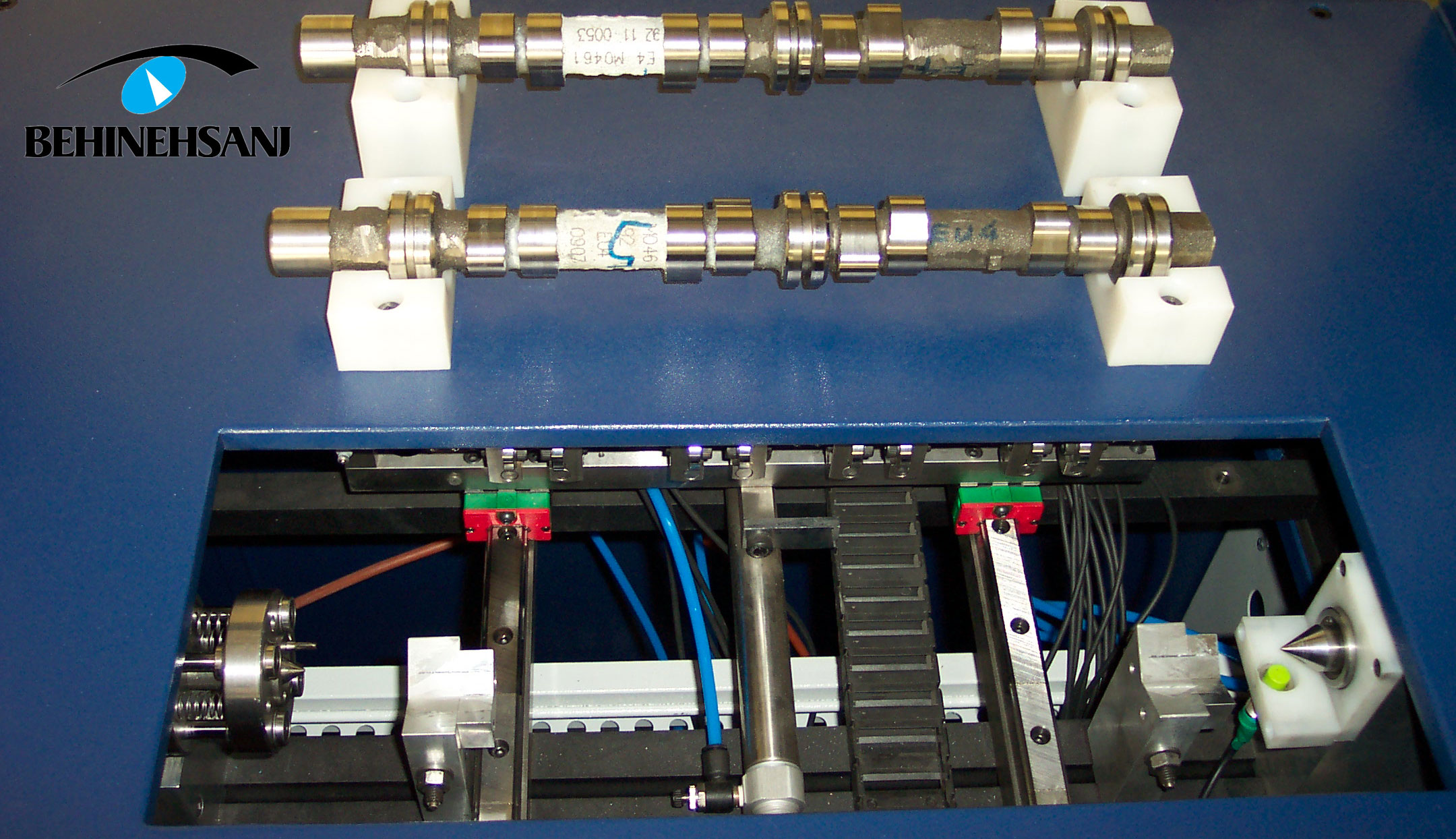

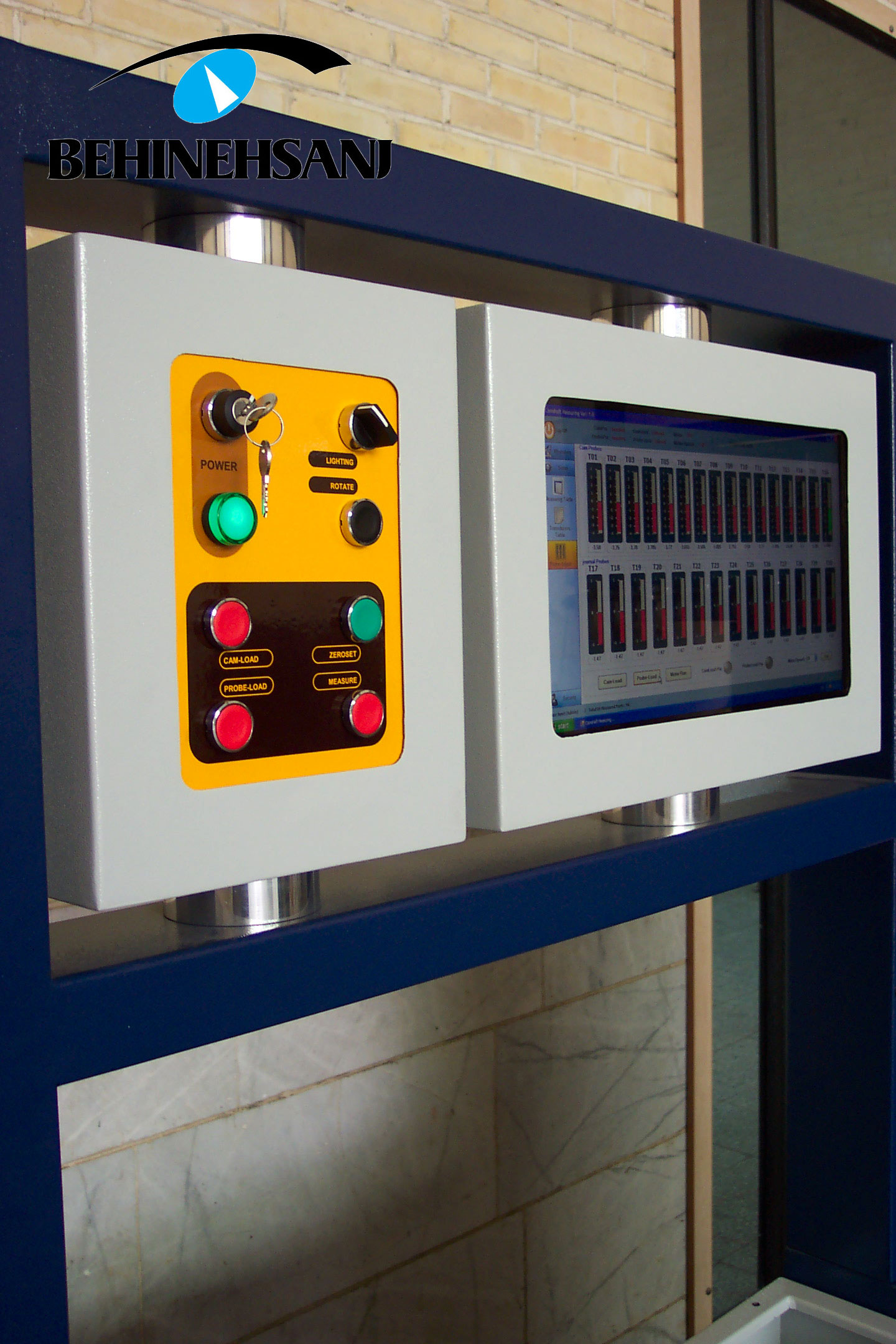

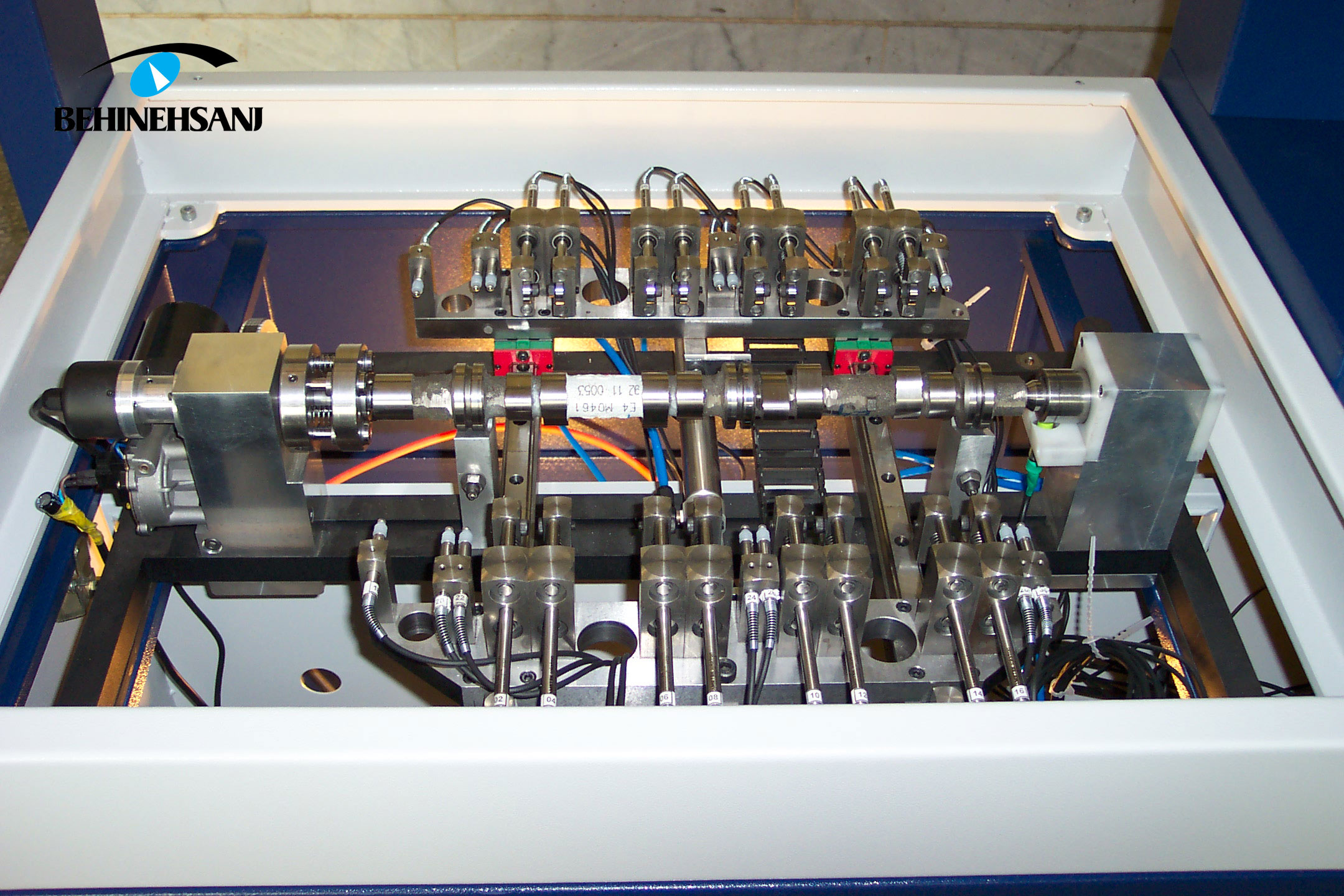

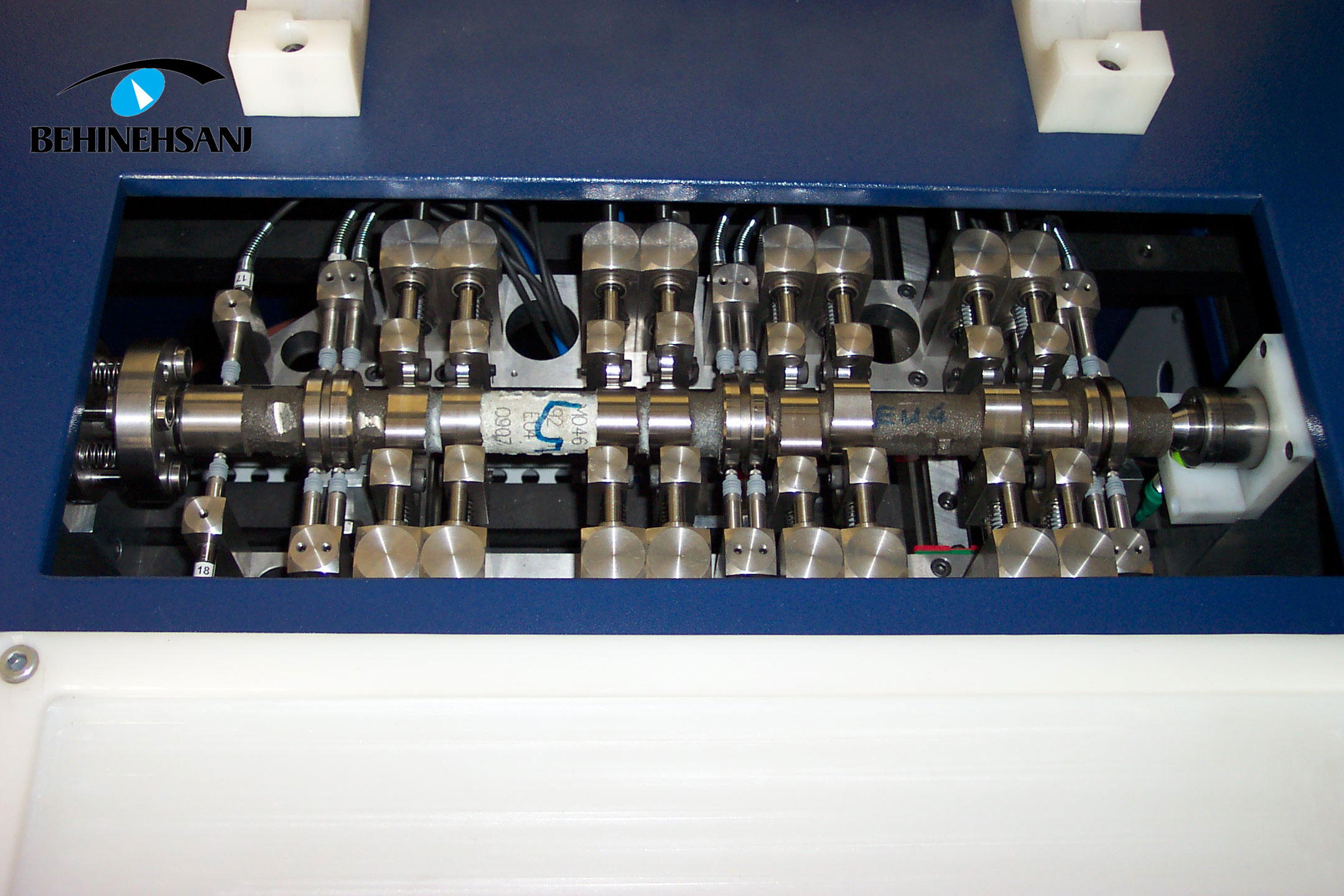

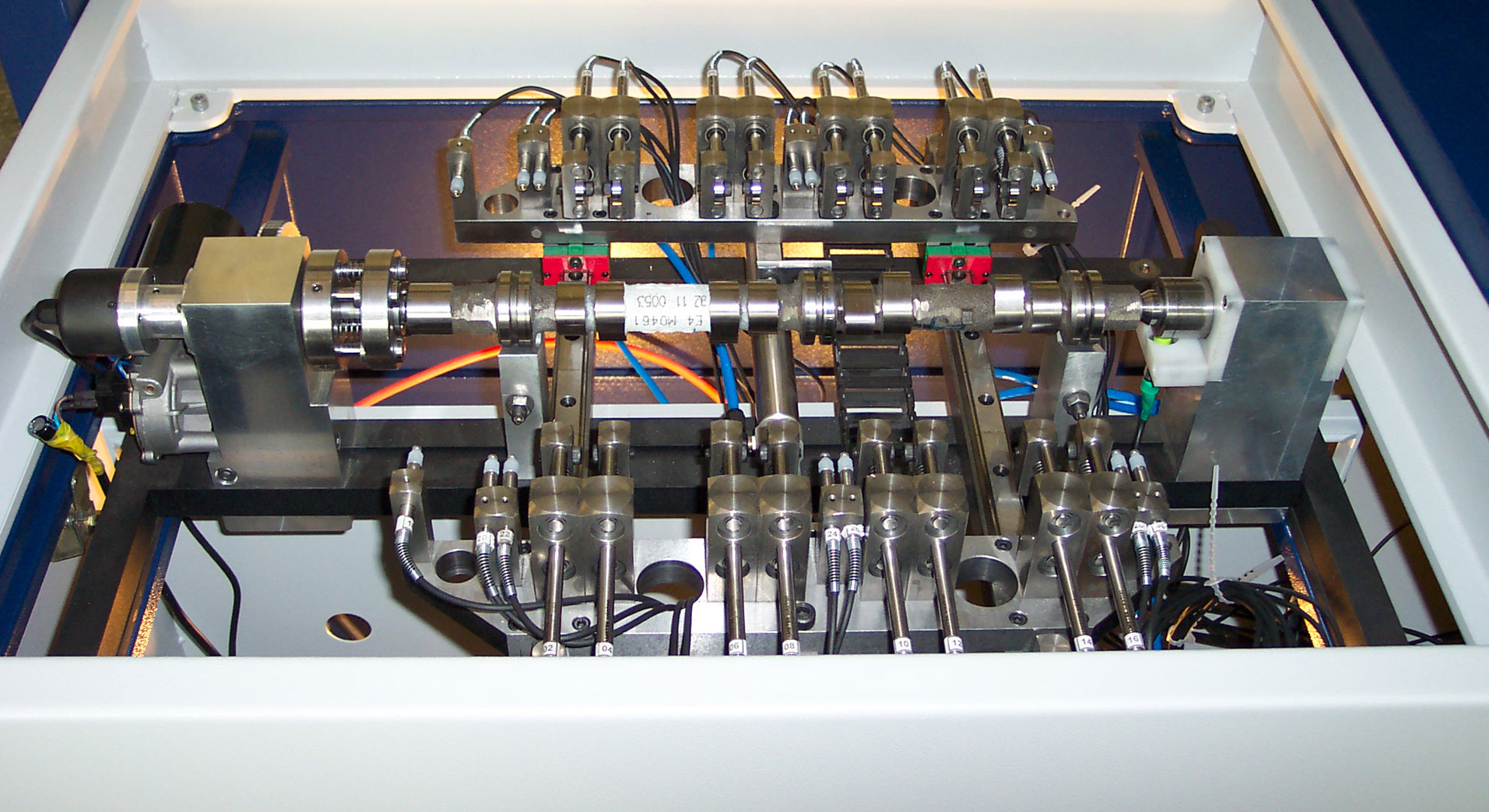

This computer-based multigauge system has been manufactured for camshaft journals and cam-height, cam-lift and base circles. The camshaft is manually fixed between two center-points and several LVDT probes touches the camshaft simultaneously. Then the part is rotated by a motor and all of camshaft measured values are displayed on monitor.
Technical Specifications:
- Multigauge measuring in 1 minute/part including load and unload
- Journals diameter, ovality and run out
- Cam height, Cam Lift and Base Circle diameter and run out
- Using 16 long stroke LVDTs for cams and 14 short stroke LVDTs for journals
- SPC analysis on results
