About the product

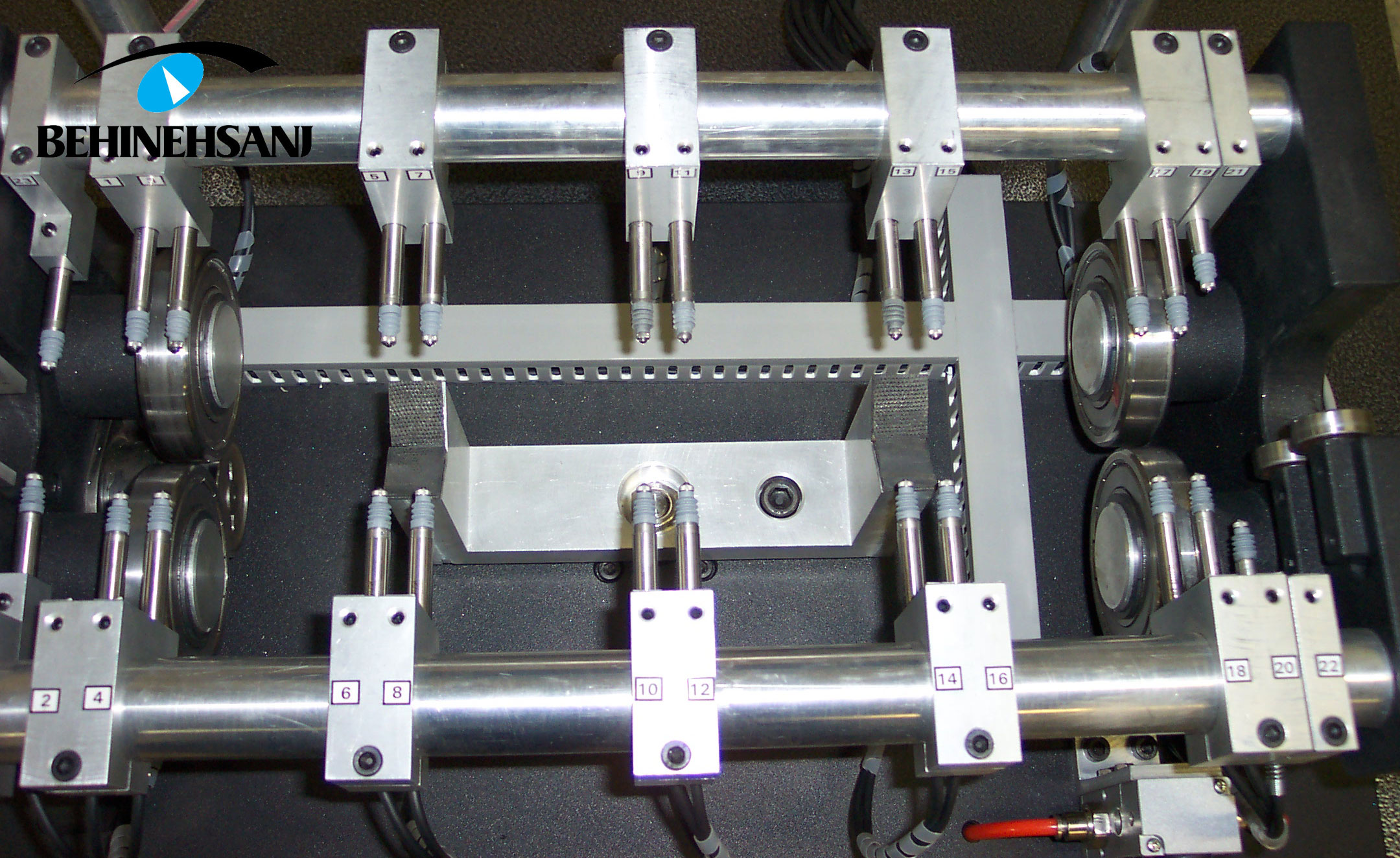

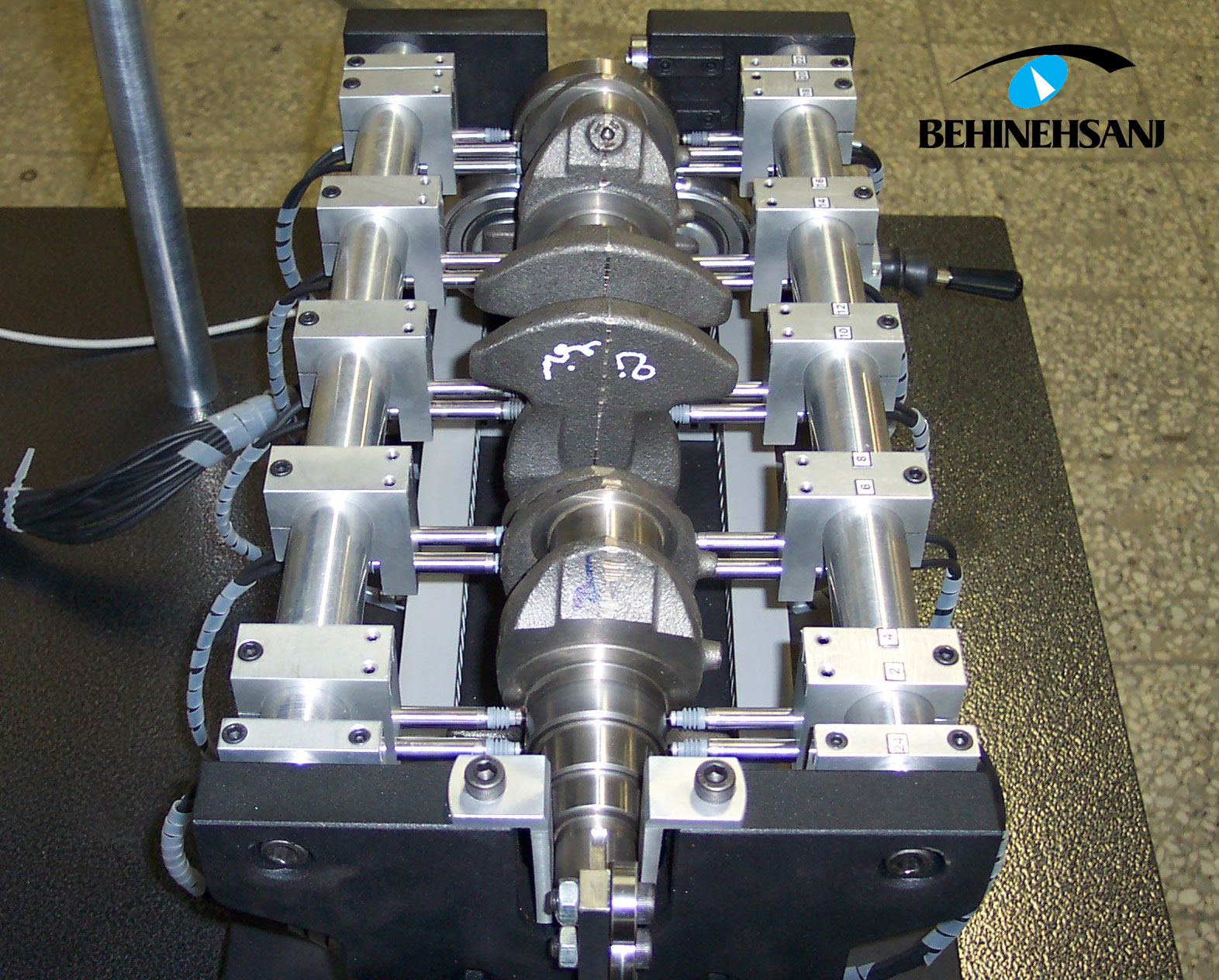

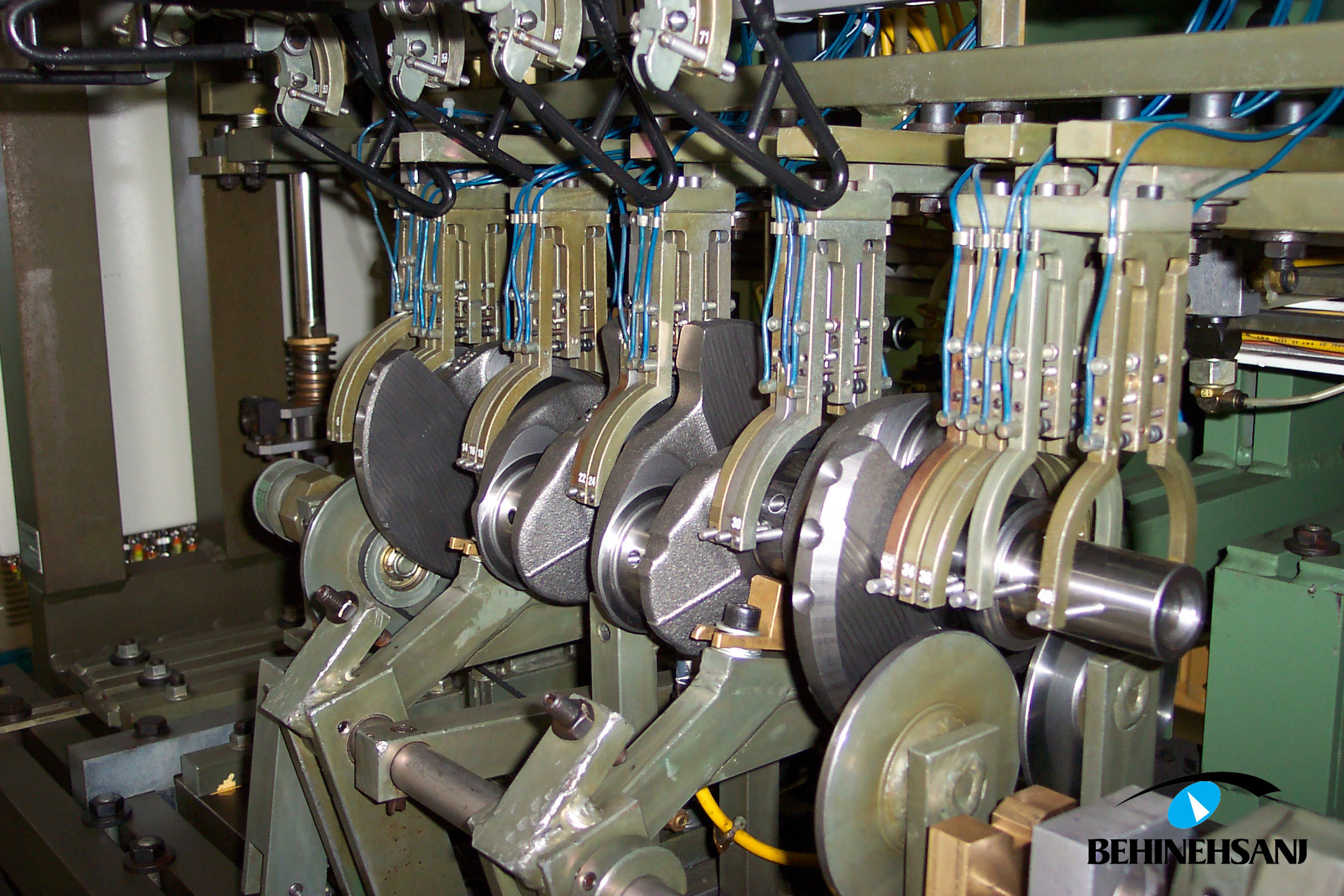

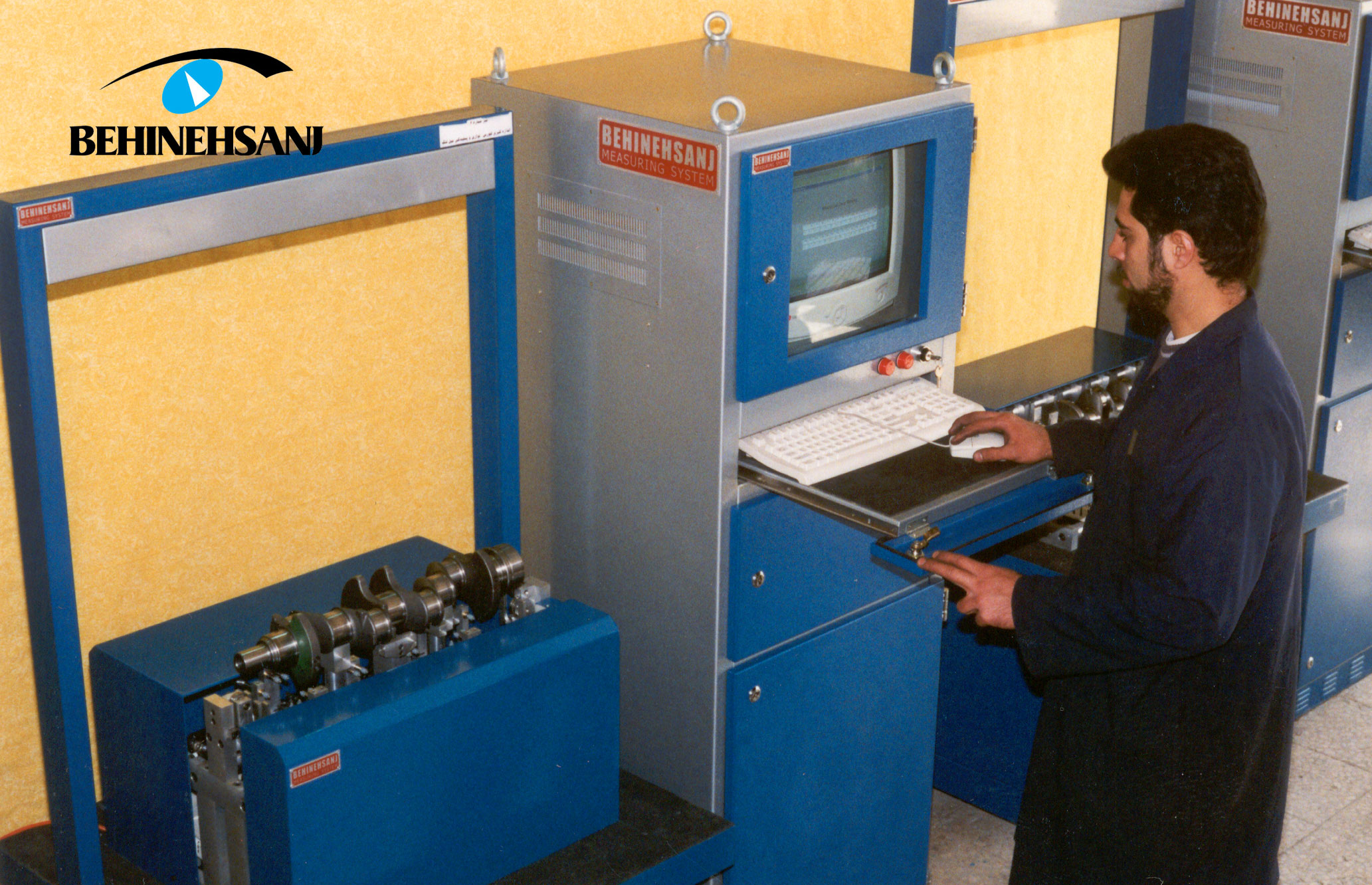

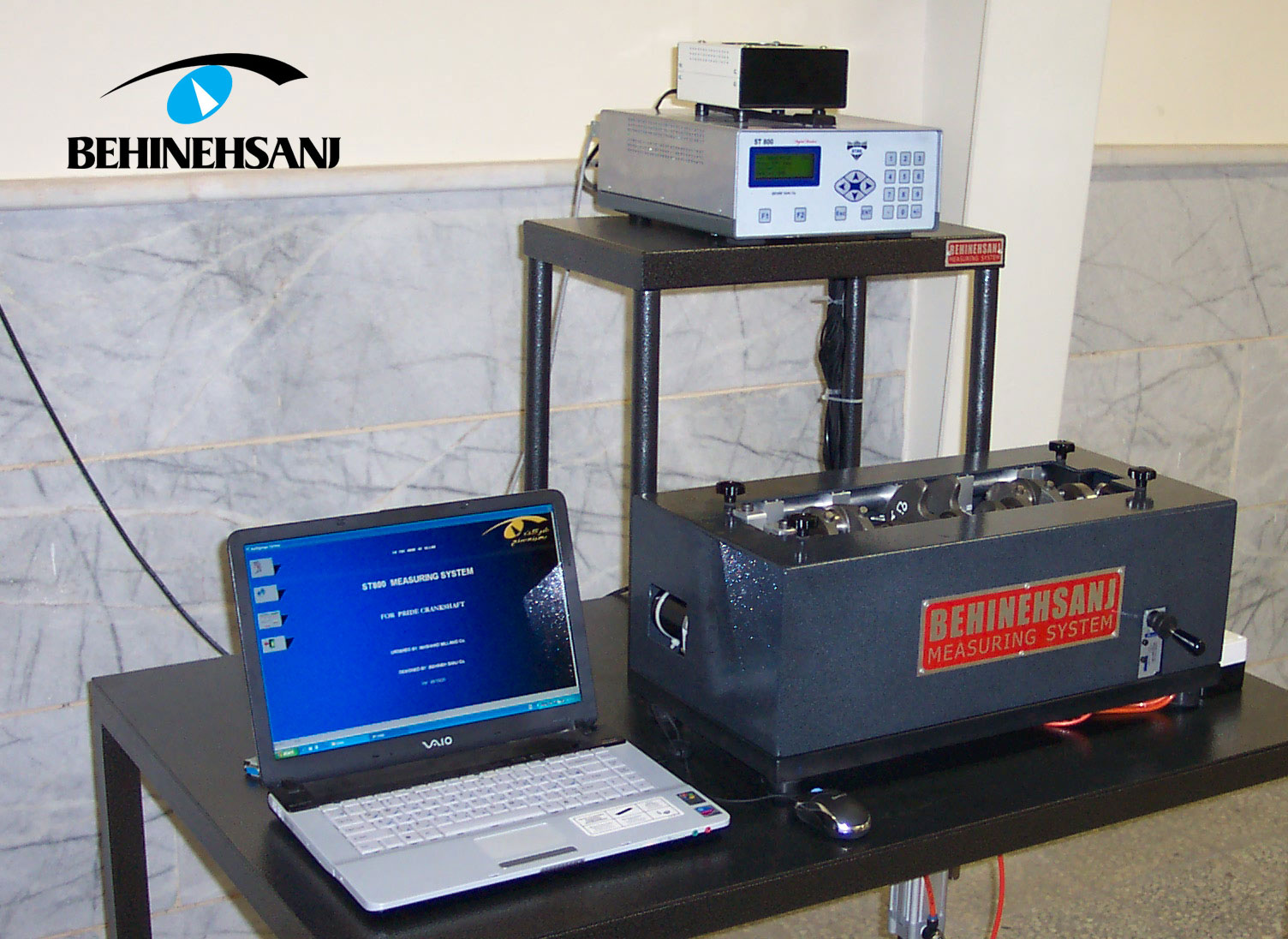

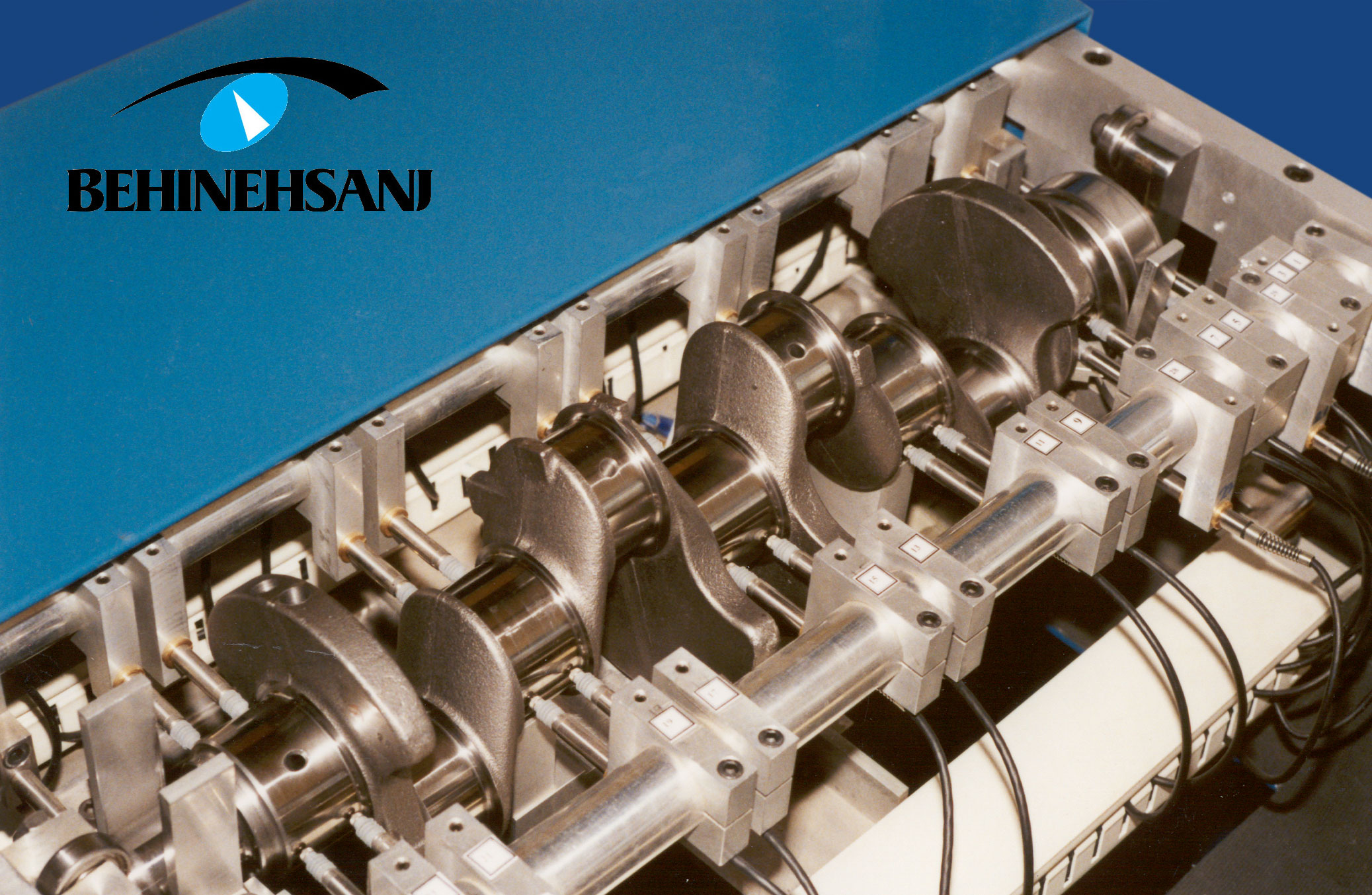

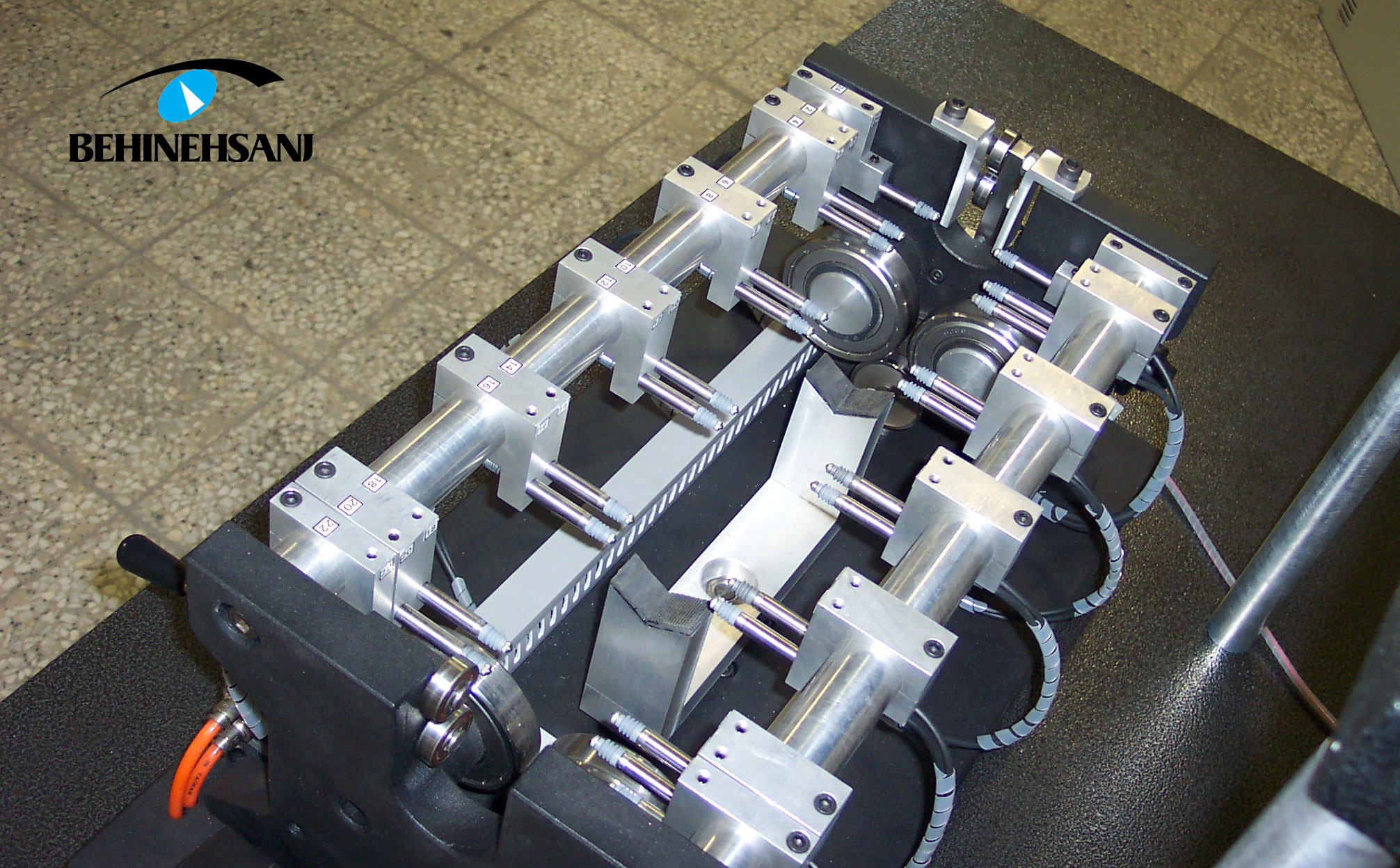

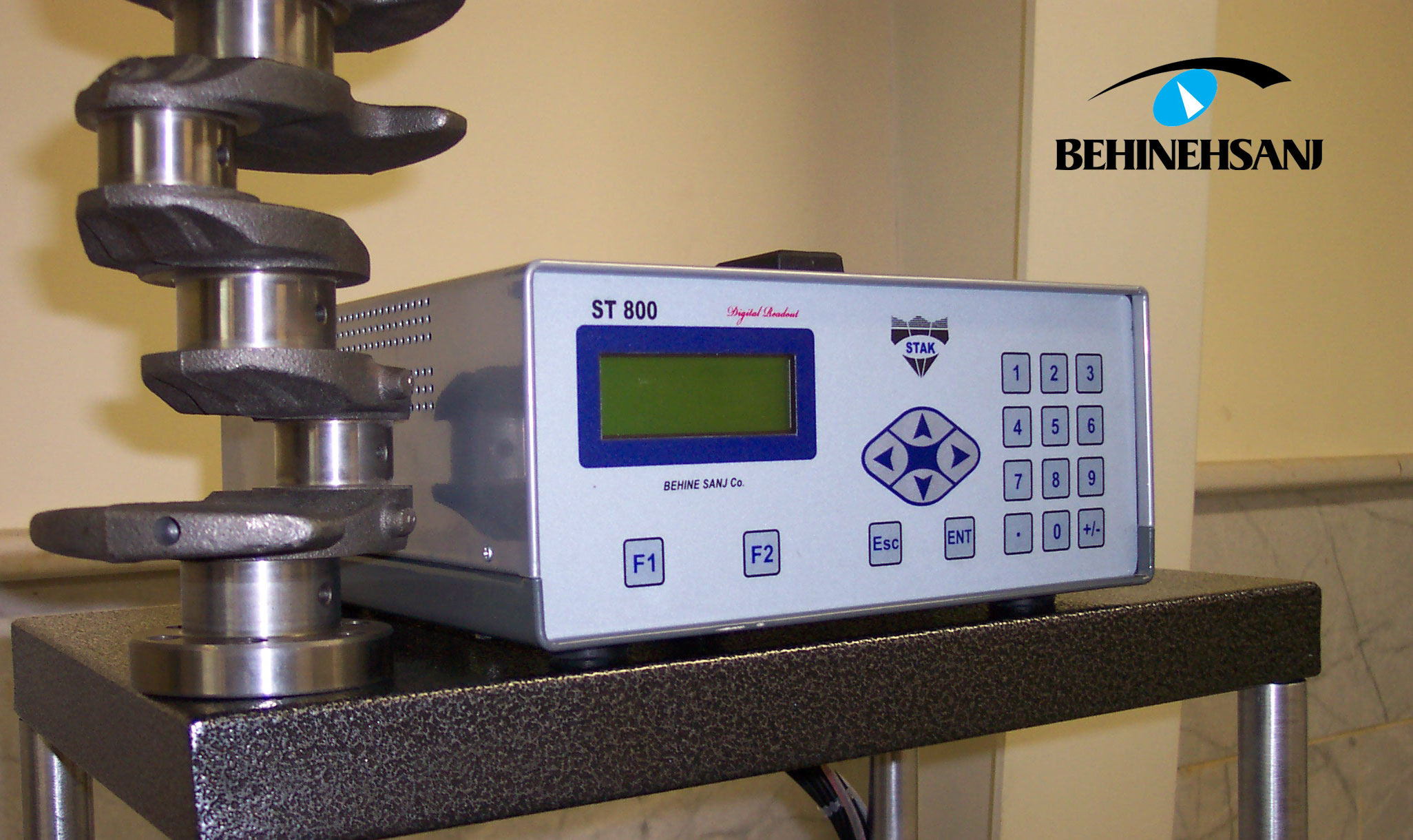

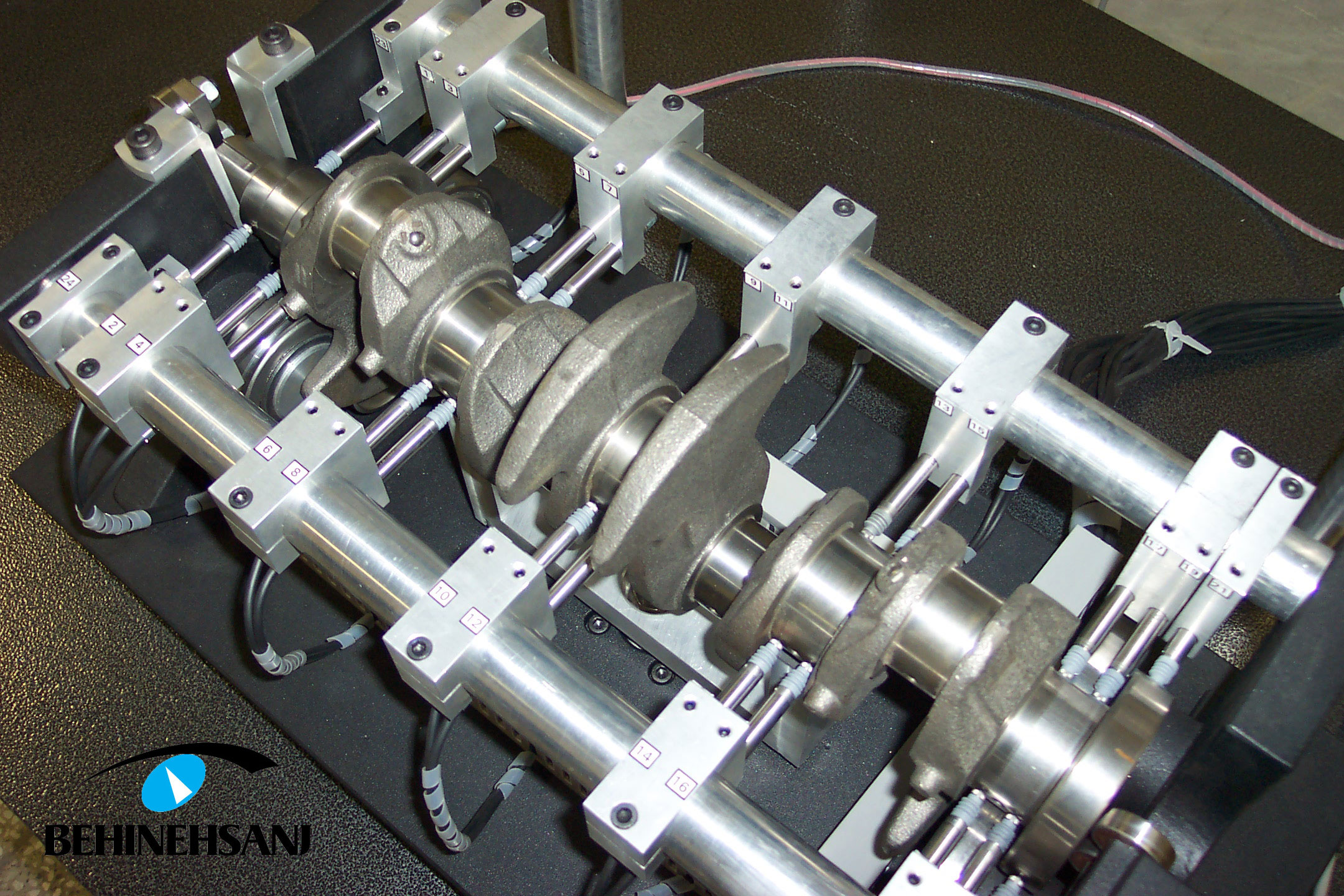

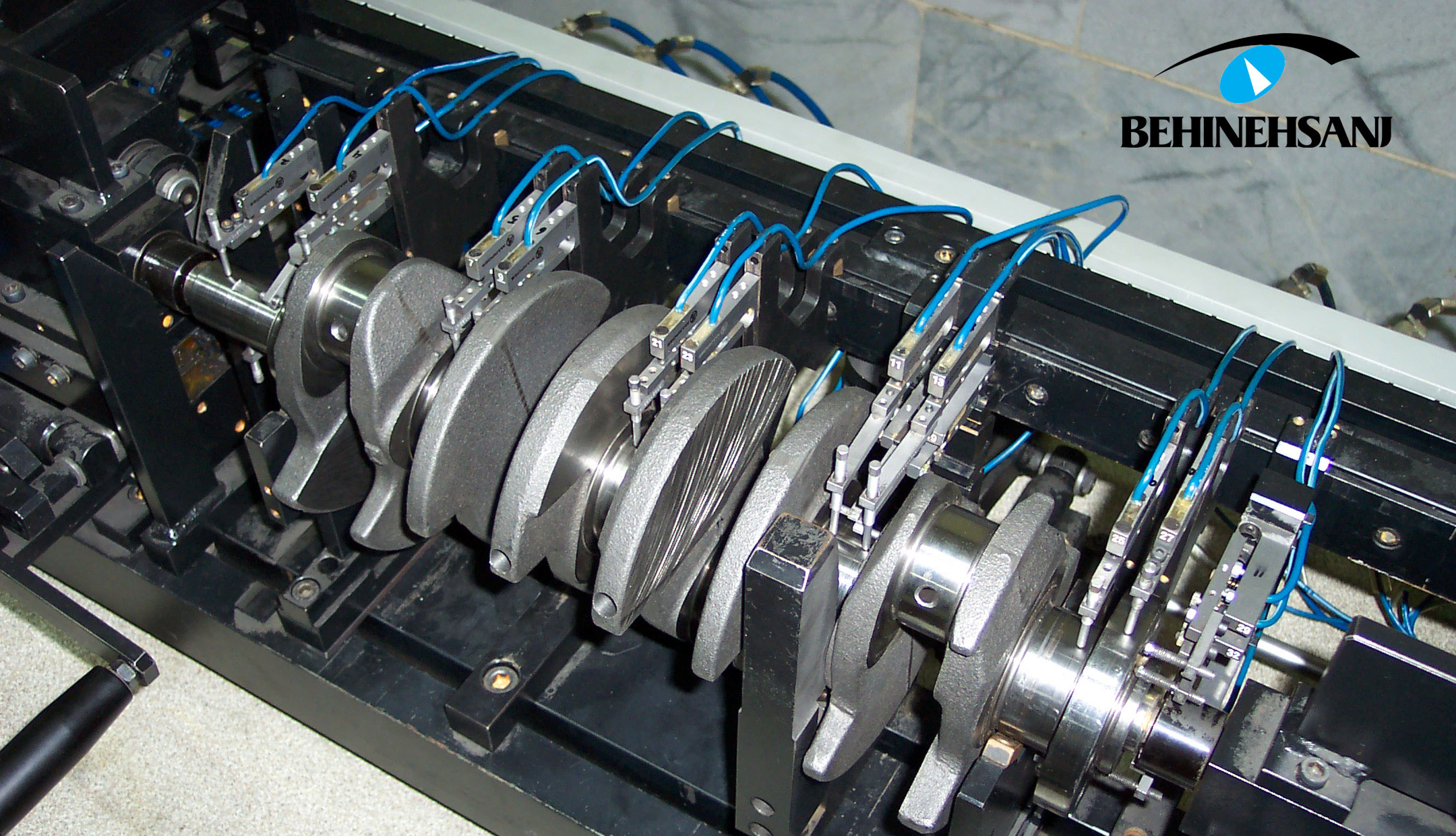

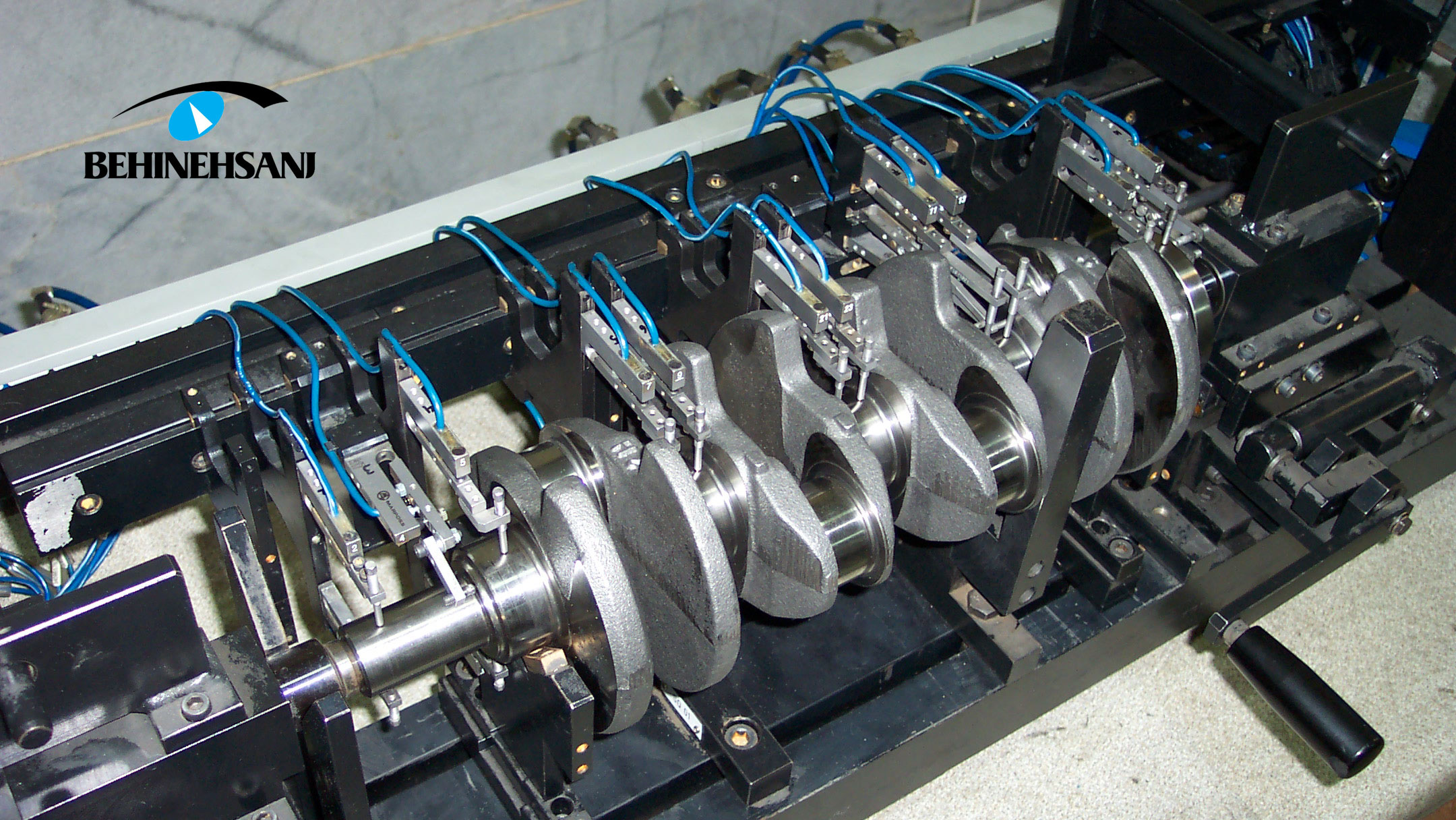

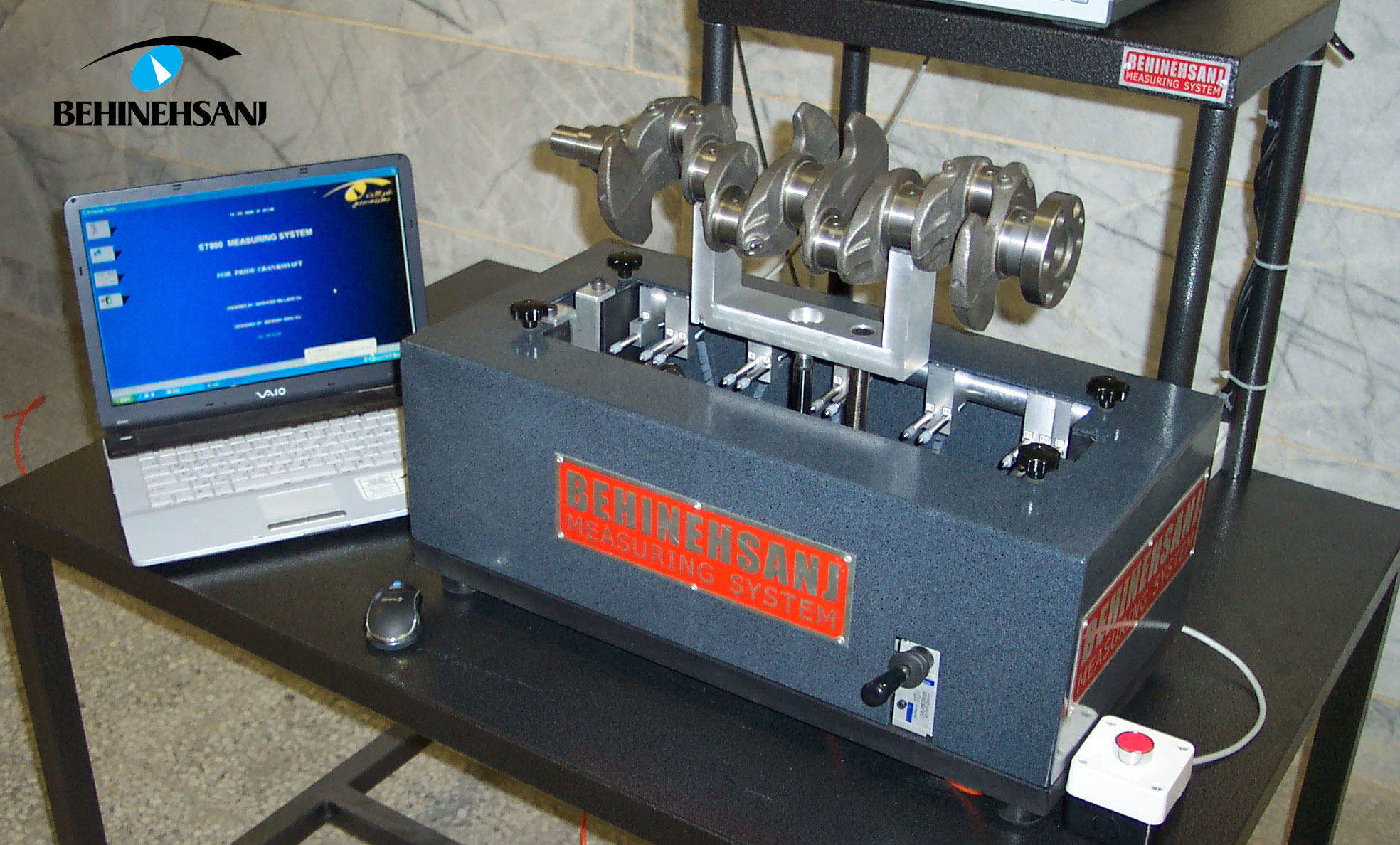

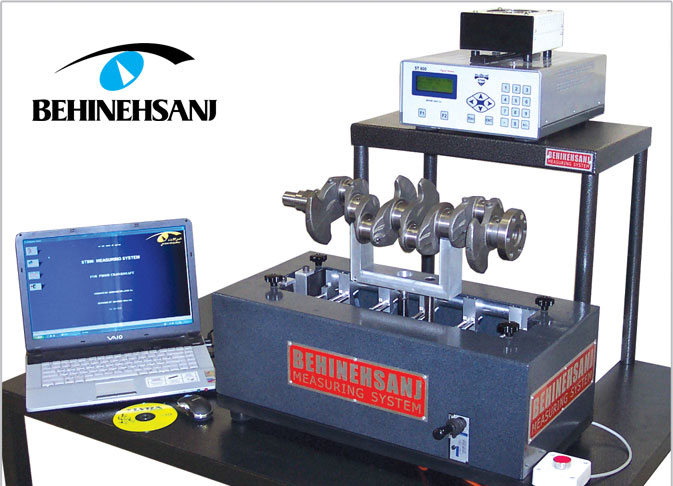

This multigauge is used for final checking of crankshaft. The part is loaded into bench by a pneumatic arm and then rotates. After one rotation, all dimensional and geometric tolerances is displayed on monitor. These measures can be saved in database and/or printed. The max cycle time of measuring is about 30 sec/part (including load and unload).
Inspection Possibilities include:
- Main Journals diameters
- Run out
- Crankshaft Courses
- Ovality
- Taper
- Journals Grading
The capability of high speed performance make it possible to check all the crankshaft parameters on 100% of the manufactured parts, guaranteeing and certifying the overall quality of the production.
