About the product

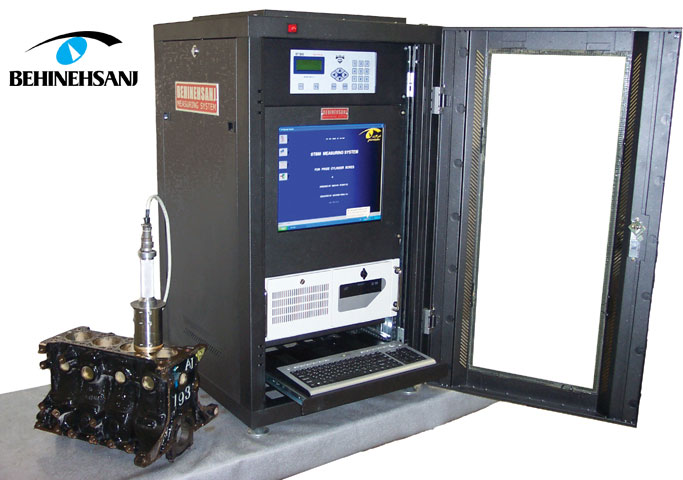

A complete set of cylinder-block gauges consists of two gauges connected to a computer-based system :
- Crank-seat Measurement
- Cylinder Bores Measurement

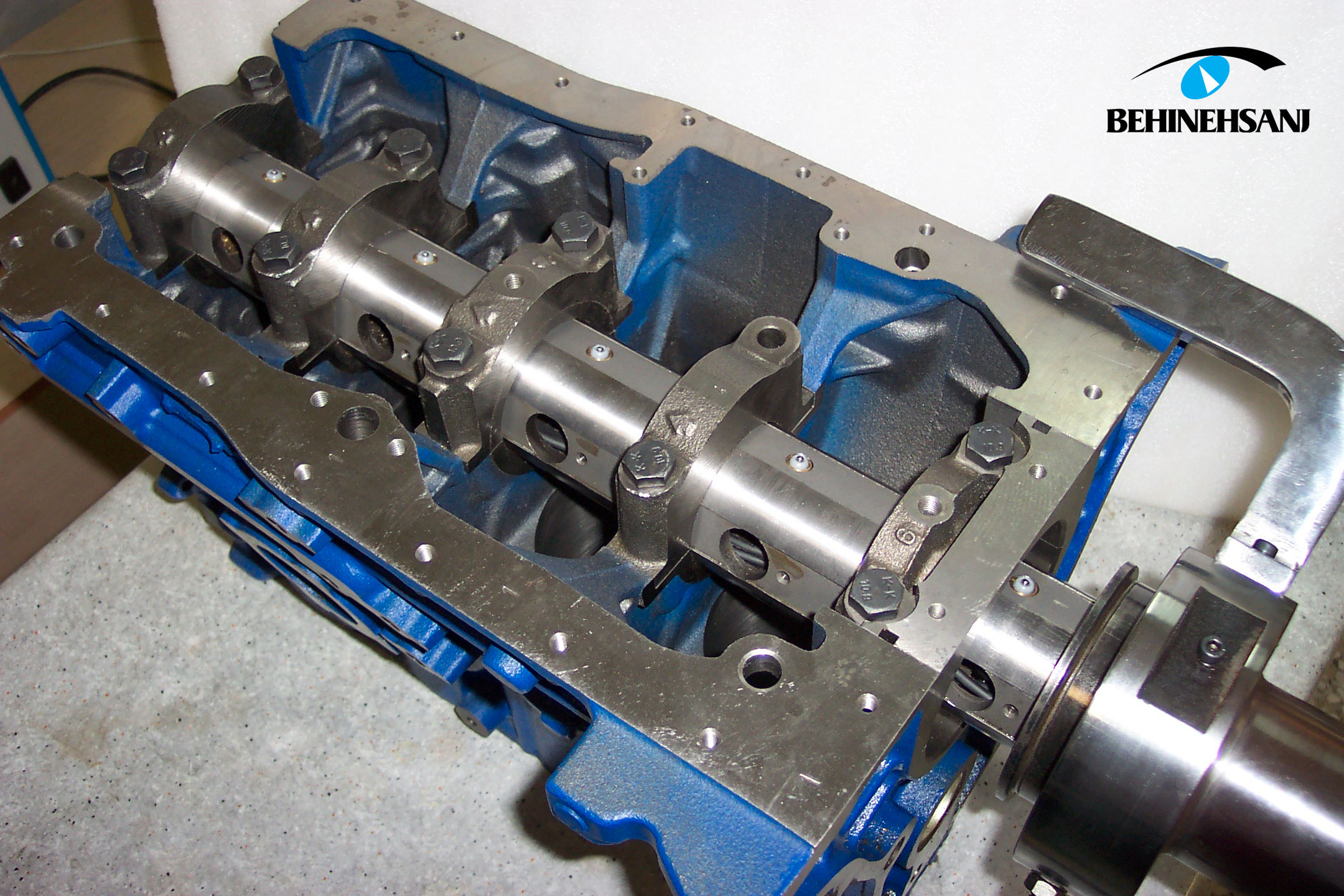

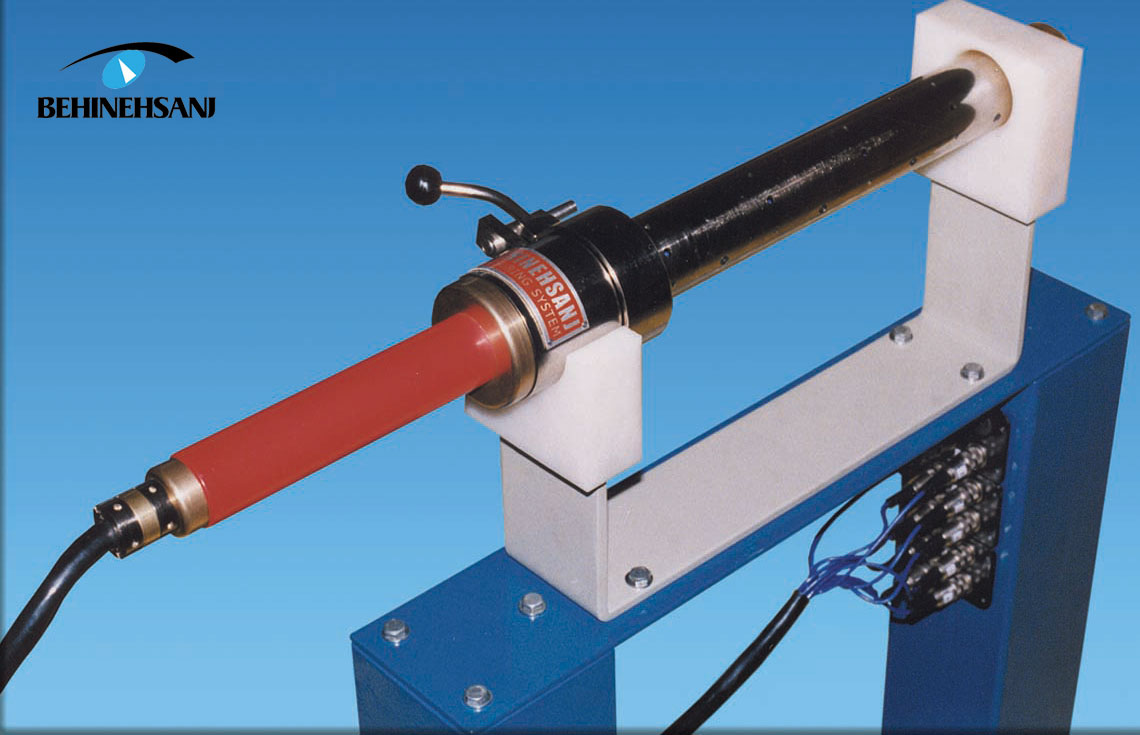

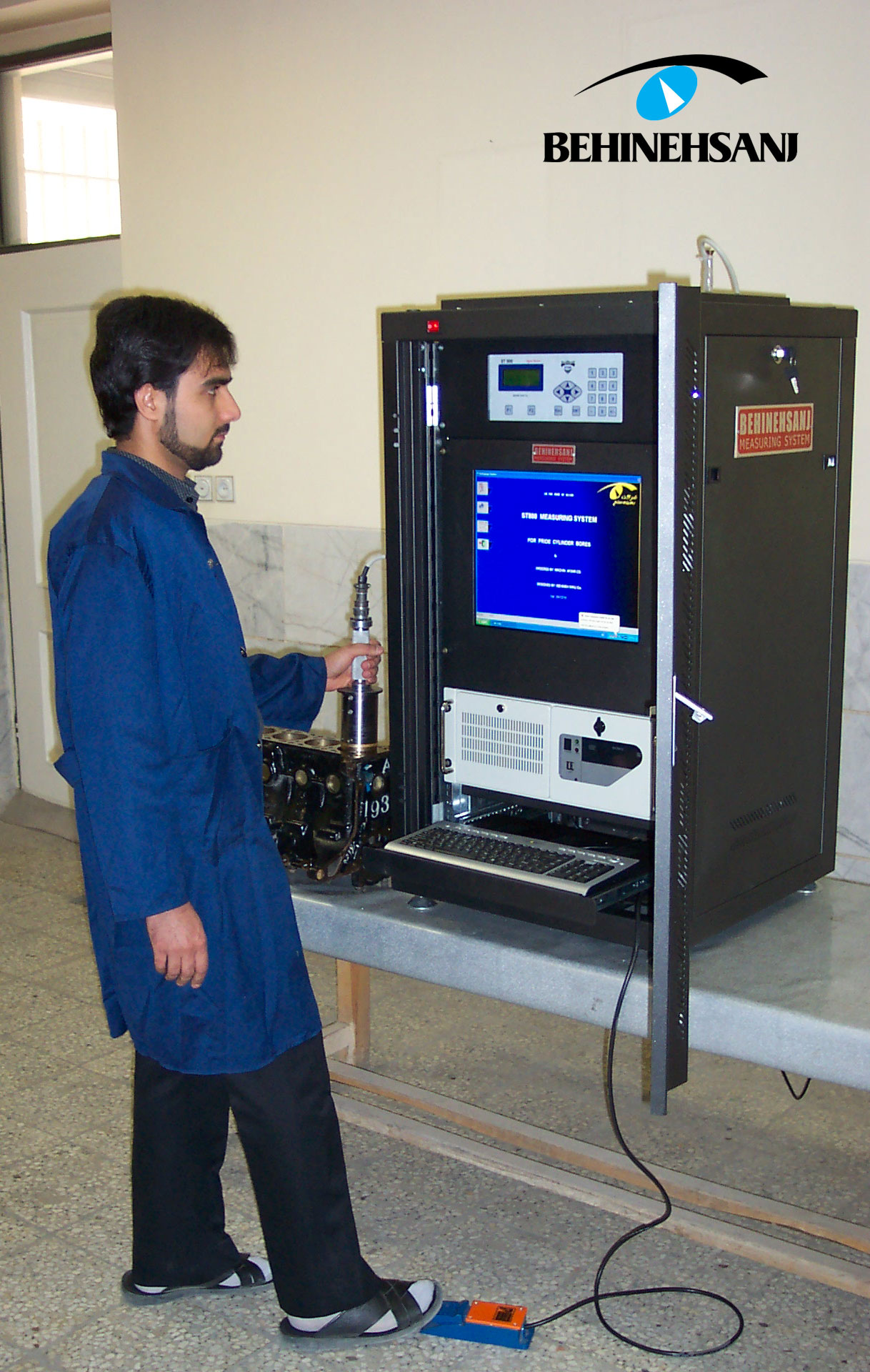

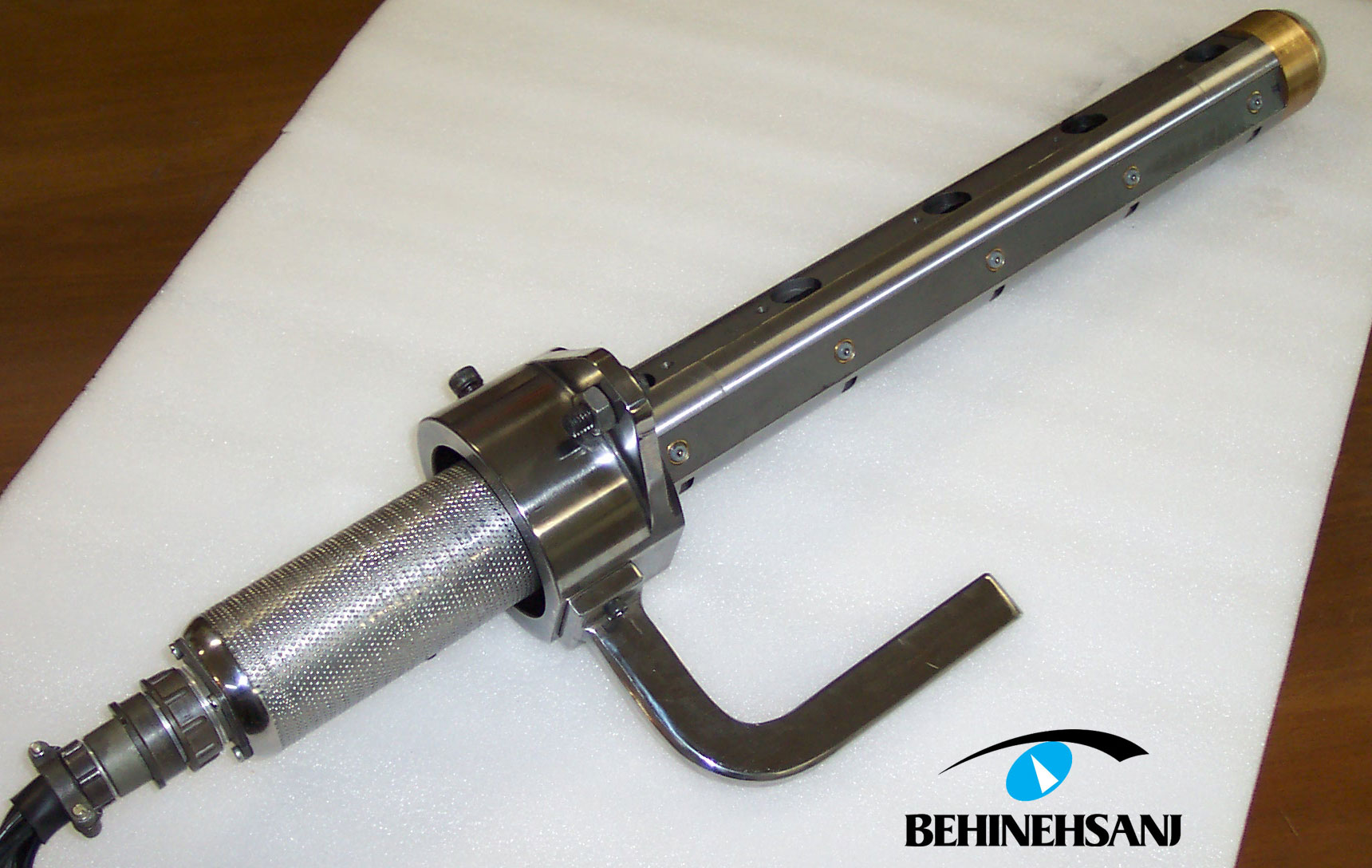

The first gauge is a special bore gauge developed for crank-seat checking in cylinder block.
The dimensional and geometric tolerances of crank-seat are:
- Diameter of 5 journals with grading
- Ovality
- Concentricity of journals no. 2,3,4 versus 1,5.

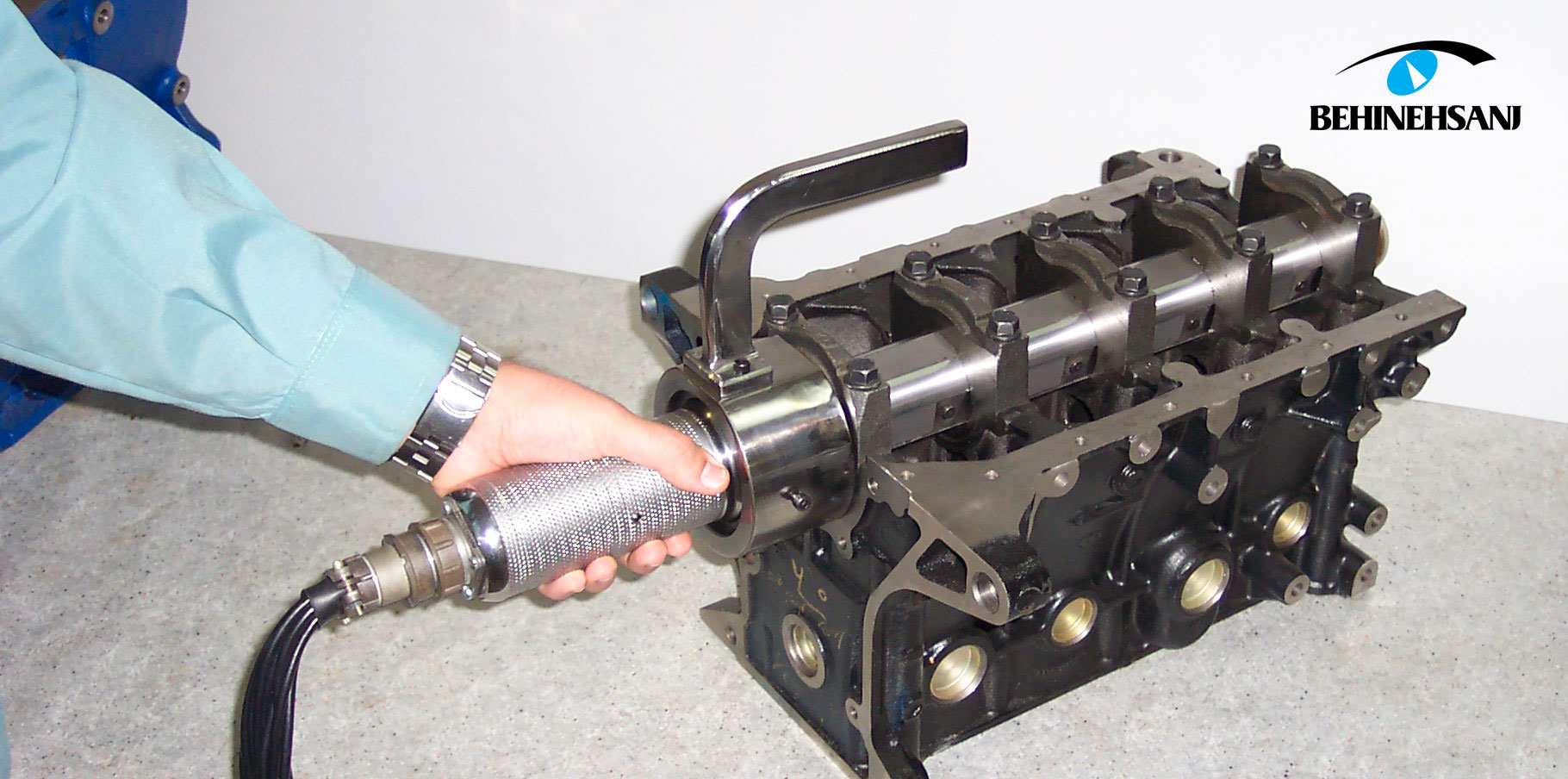

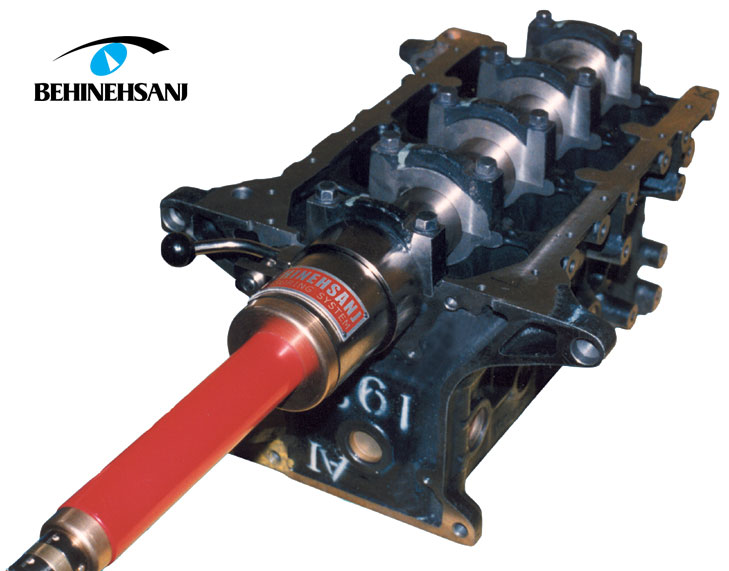

This gauge is inserted manually into crank-seat and check the dimensions of all journals simultaneously.

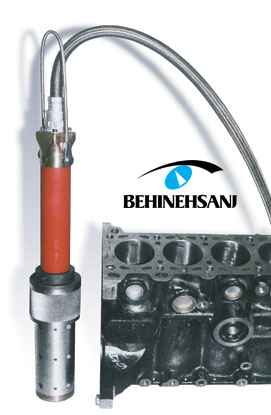

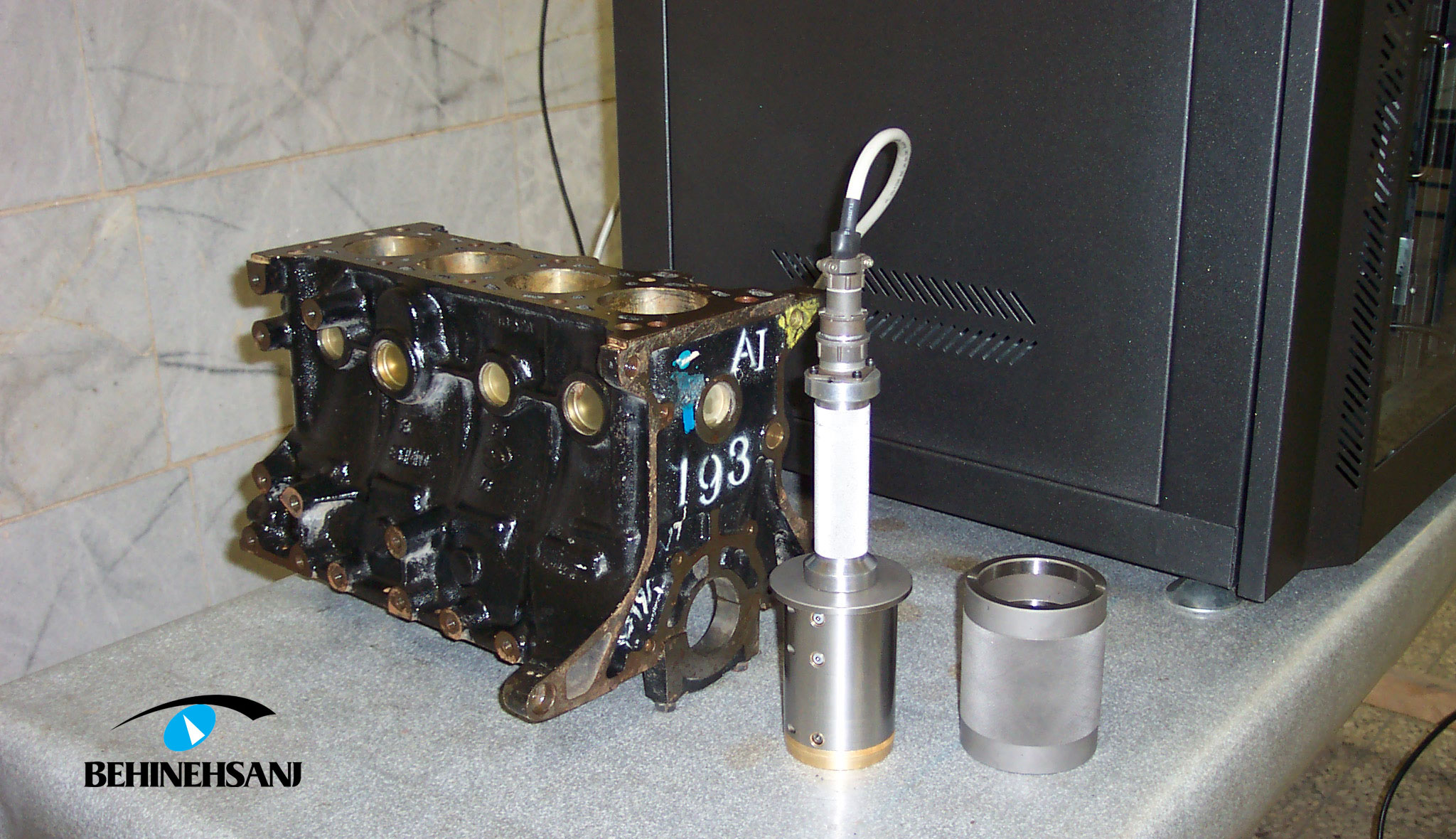

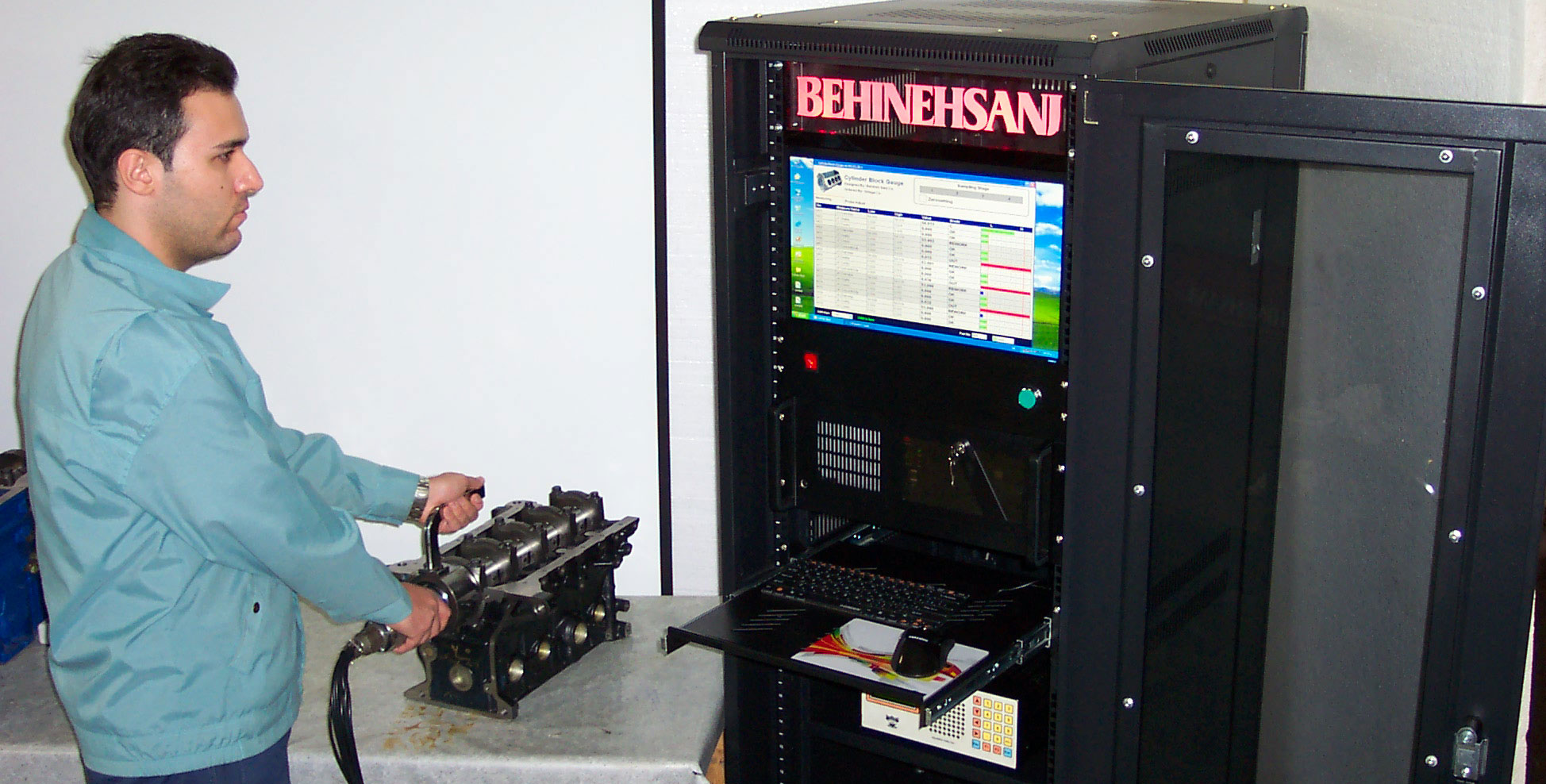

The second gauge is developed for cylinder bore measuring and grading. The gauge includes 6 probes in 3 sections, and inserted manually in cylinder bores and rotated by operator.
This allows, in one cycle to inspect several parameters of each bore:
- Diameter in 3 sections
- Ovality in 3 sections
- Taper
- Grading
