About the product

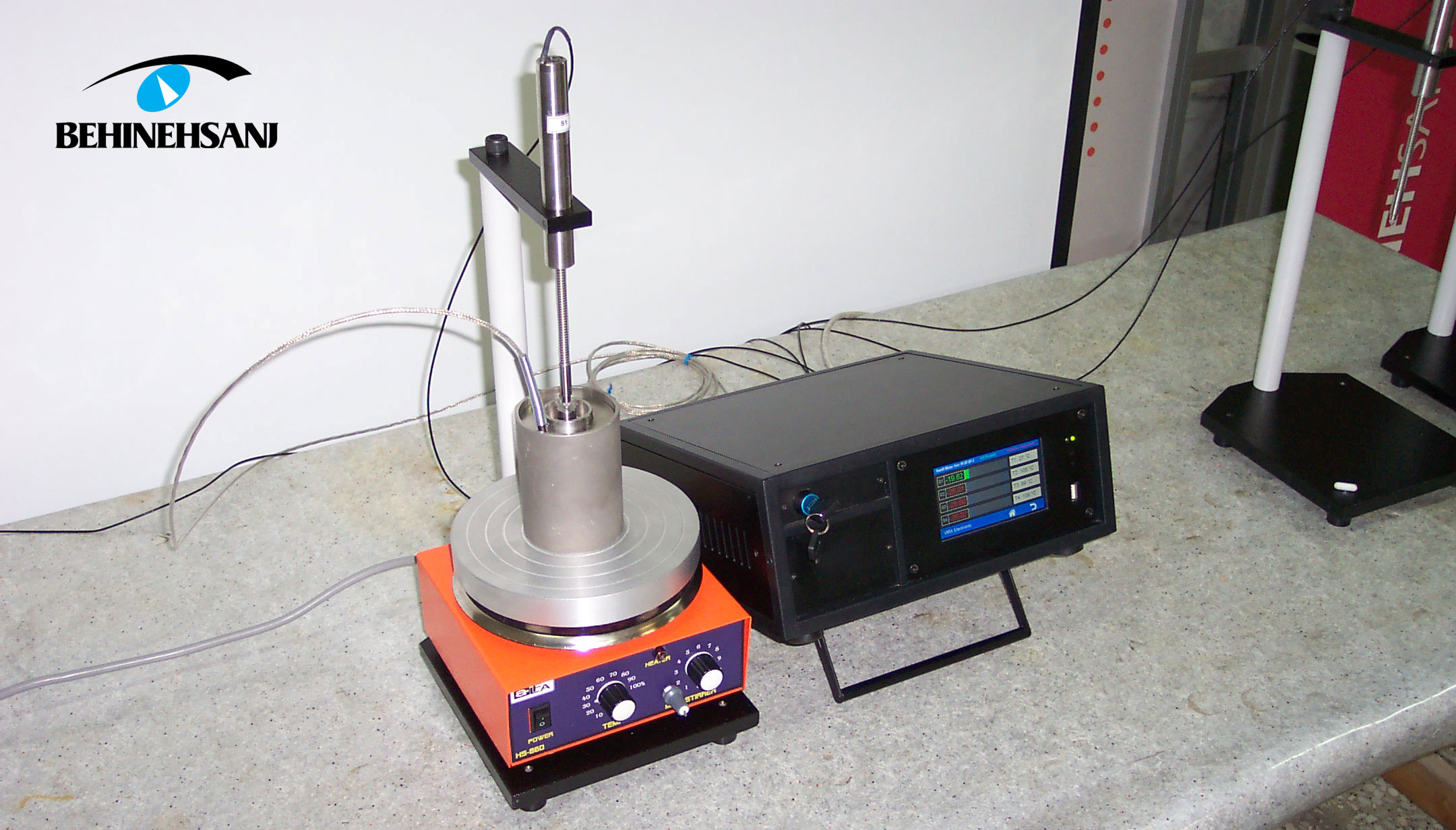

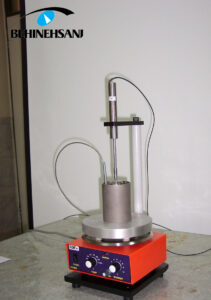

The Dynamic Linear Swell Meter is designed to simultaneously test up to four drilling fluids on a representative shale sample for extended periods of time at temperatures up to 95°C. The fluid container is located on a warmer&stirring device and a shale sample wafer located inside the container. During the test process, the fluid temperature is increased slowly and the diagram of expansion of sample versus time are plotted on display.
Technical Specifications:

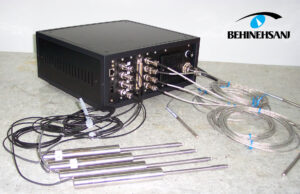

- Using up to 4 LVDT sensors for measuring the expansion of sample
- Using up to 4 stainless steel temperature sensors for recording the temperature
- Digital color display for showing the diagram and measured values
