About the product
After final grinding, a pinion shaft is inserted between two center on a fixture by operator. Then the part is rotated around its axis and several LVDT probes touch the part to measure its diameters and runouts. Final results are displayed on 7-seg readout.
Technical Specifications:

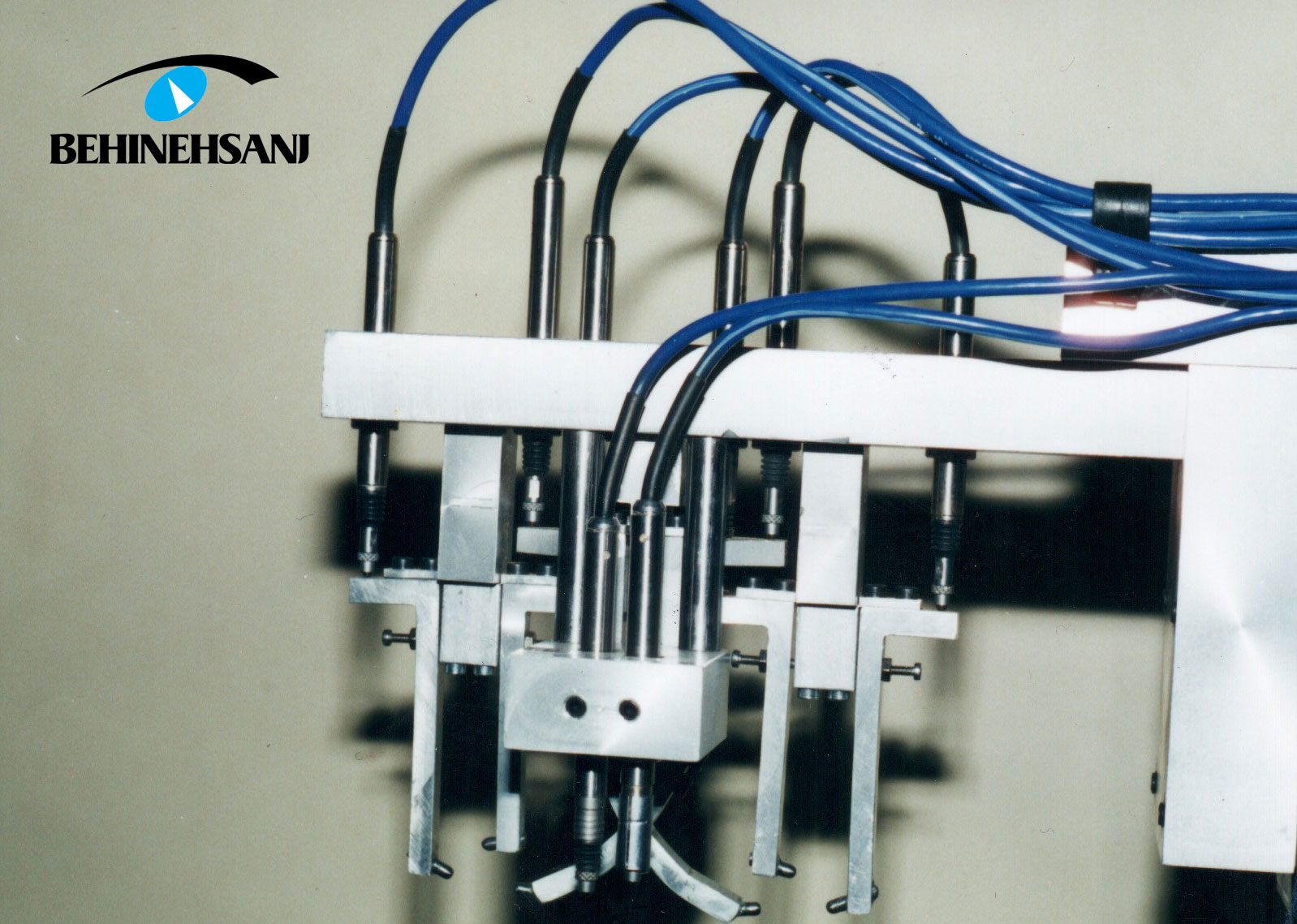

- Using LVDT probes with 0.001mm resolution
- Easy and precise measurement
- Less than 5Sec. Cycle time
- Showing diameters and runouts
