Process & Display Unit for Electronic Gauges

About the product

Every electronic measuring gauge  needs to a display and processing unit. Behinehsanj co. uses several categories of display unit in its projects.

  1. In some cases, in which a lot of probes and measures are used, the display unit is usually implemented by a PC-based version with a Windows-based software program named BS-22. In BS-22, the mesurement& control unit ,including A/D convertes and I/O circuits, is also implemented so that it connects to the PC via a serial or an Ethernet port. A simple monitor connected to the PC is showing all of data , both results and adjustments.
  2. In medium and small-size projects, a digital readout is usually used for both measurement and control. A dedicated firmware is implemented on the readout and controls and processes all of system requirements. In these cases, Behinehsanj uses several types of digital readouts such as VS-series and ML-LP series.

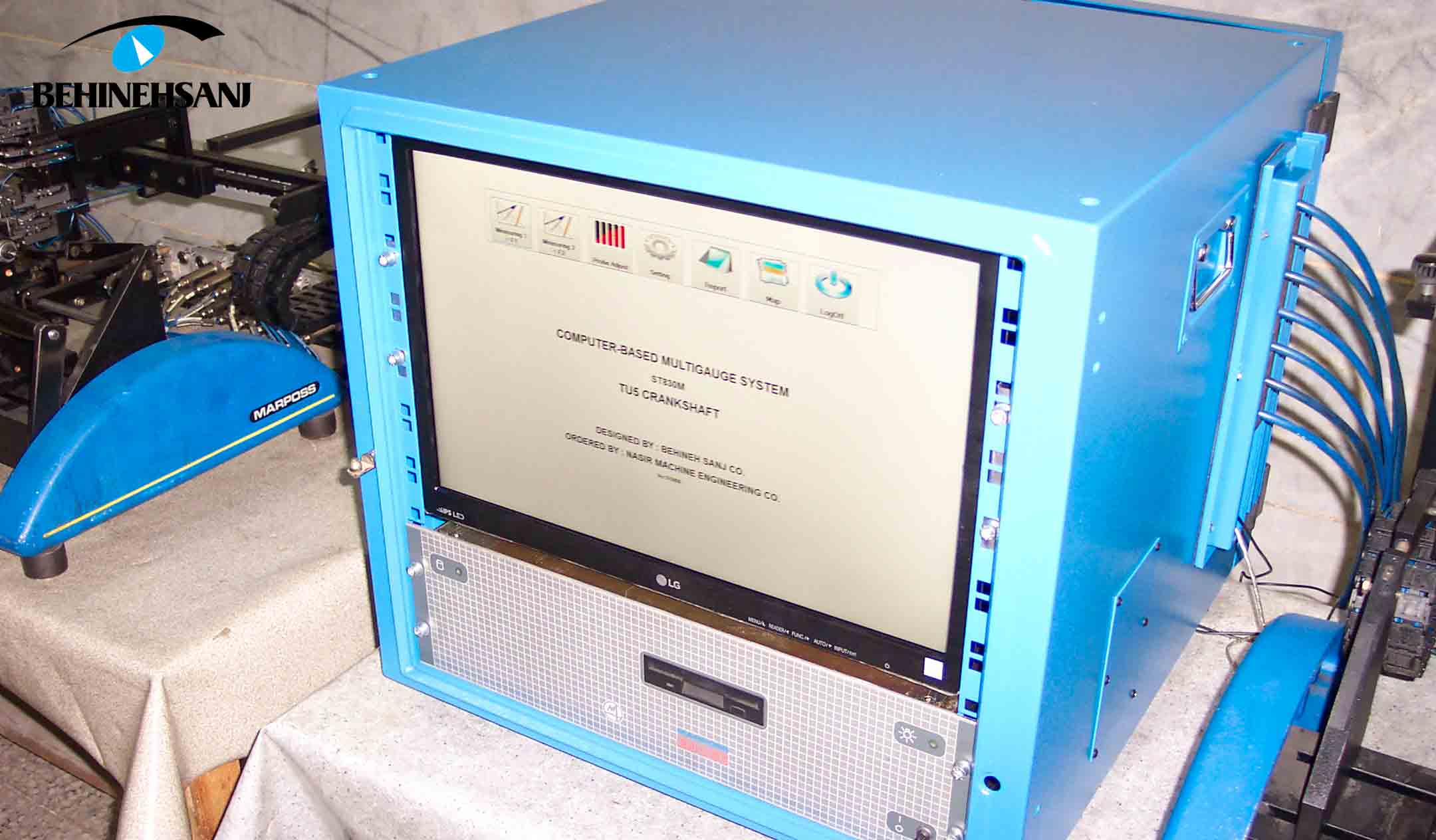

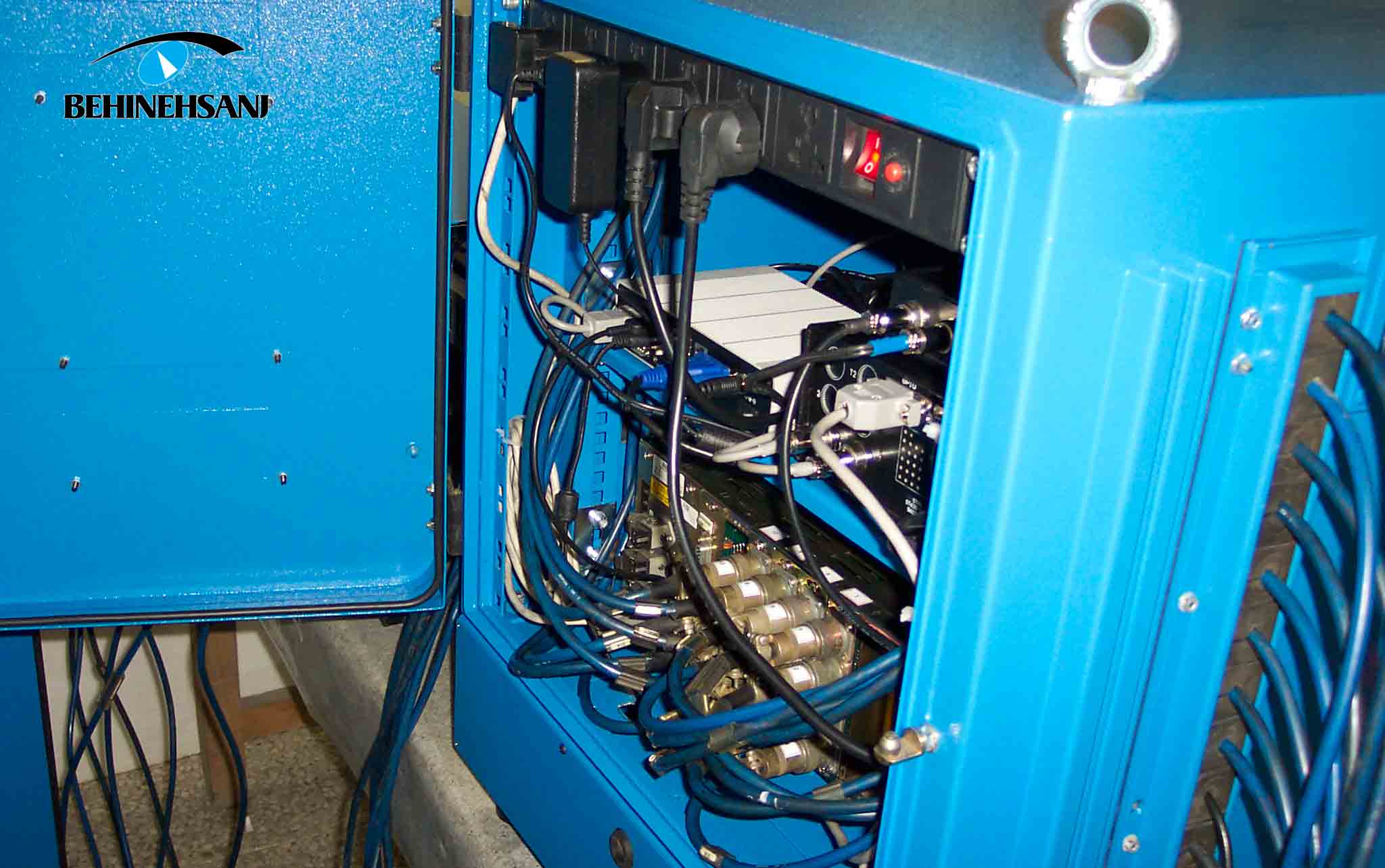

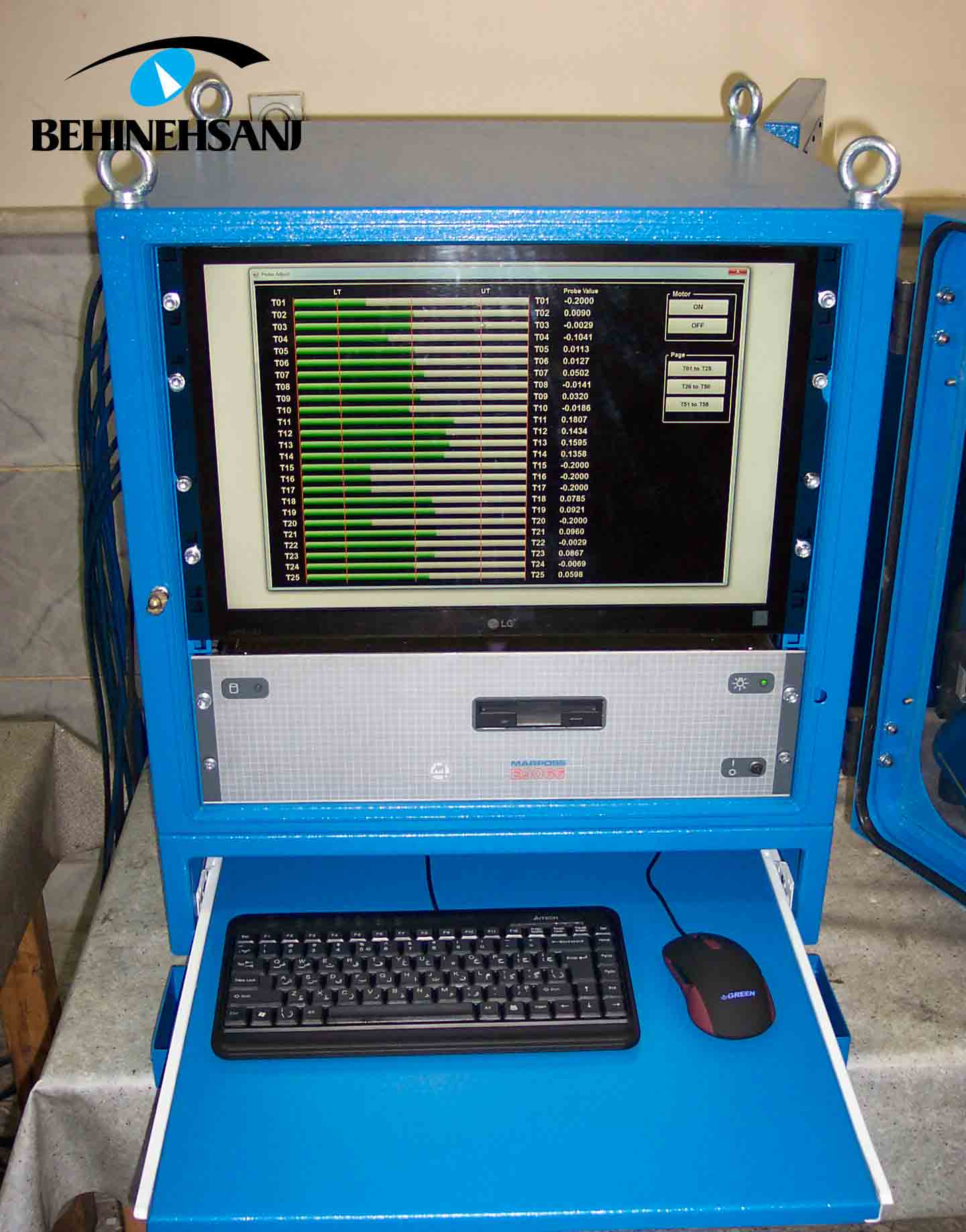

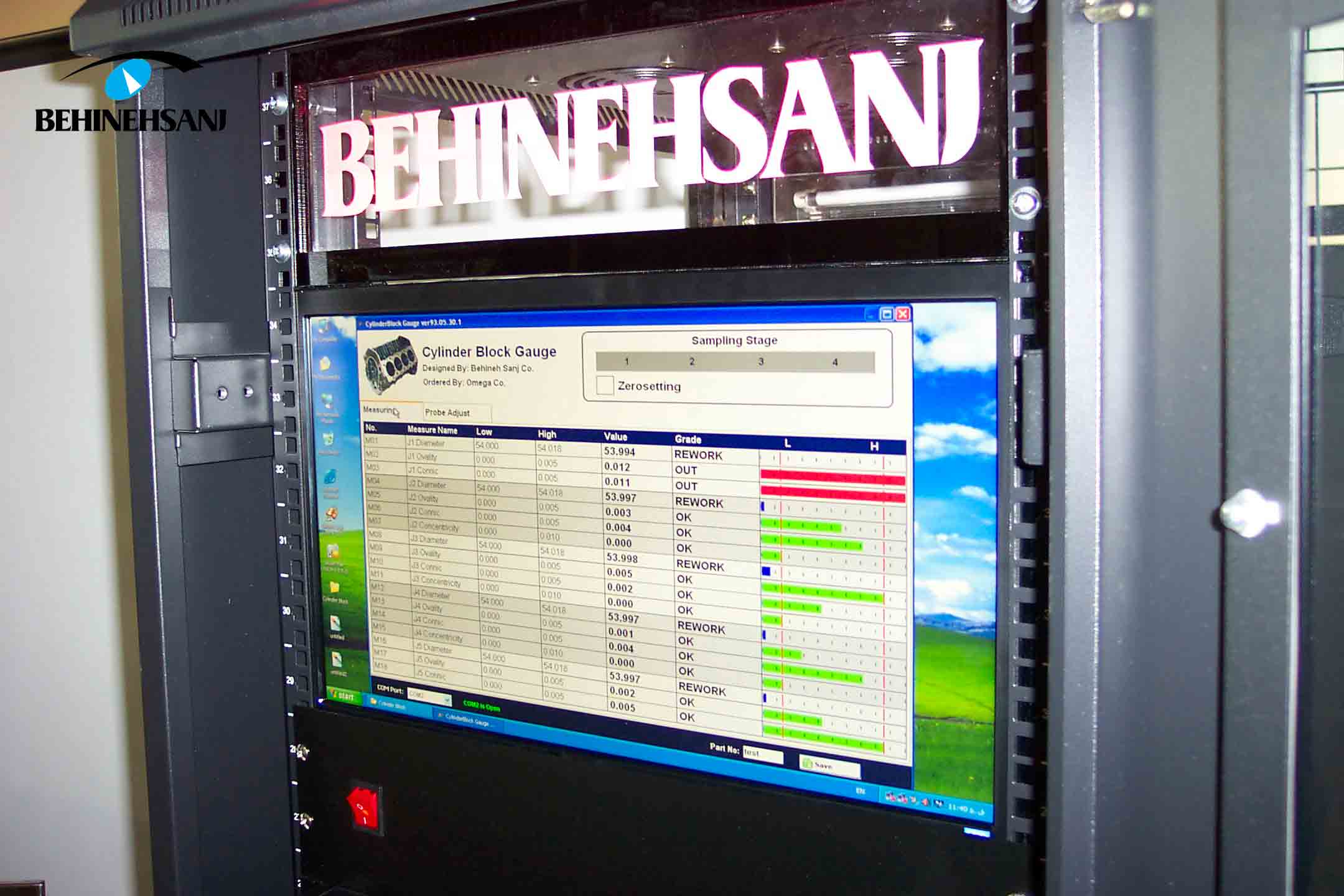

BS-22 Technical Features:

  •  Industrial PC-based design
  •  Using industrial fanless mini-PCs
  •  19” Standard rack as system cabinet
  •  19” /20” monitor as display
  •  A special unit for control and measurement
  •  A Windows-based software program runs on PC including several menus:

An adjust menu for probes and tolerances adjustments

A measuring menu including zerosetting and measuring processes

A report menu for reporting all of system data

A SPC menu for statistical process control

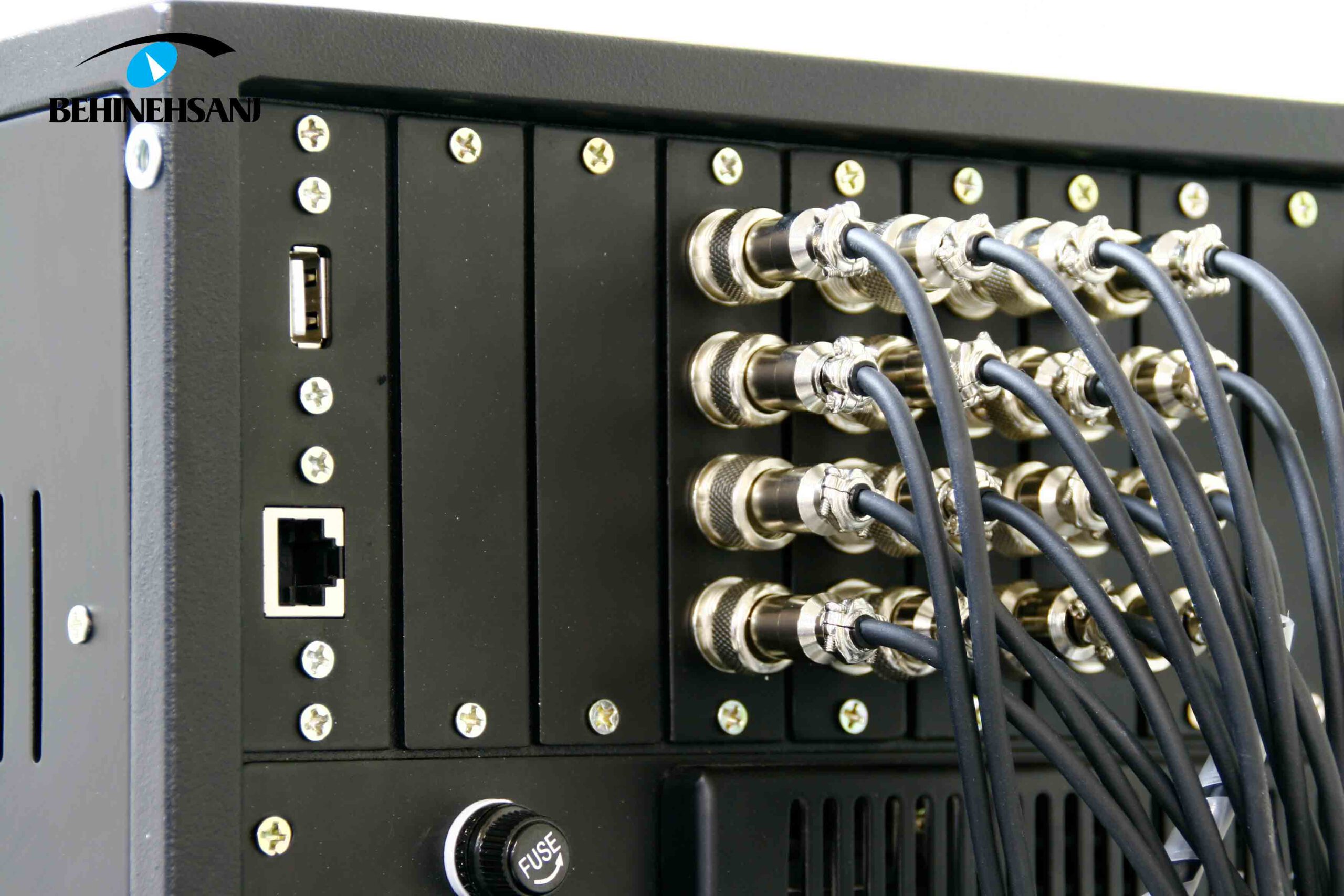

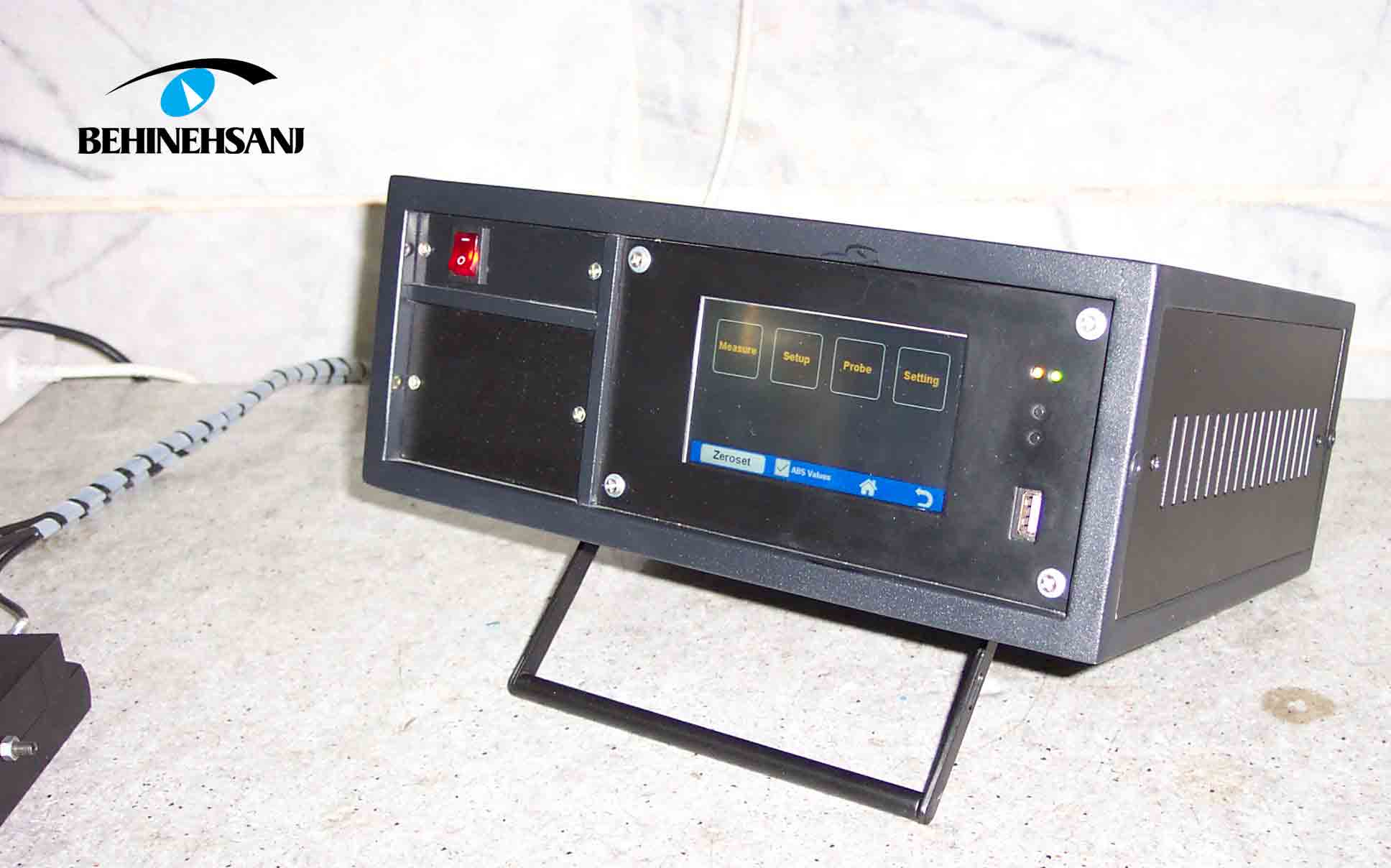

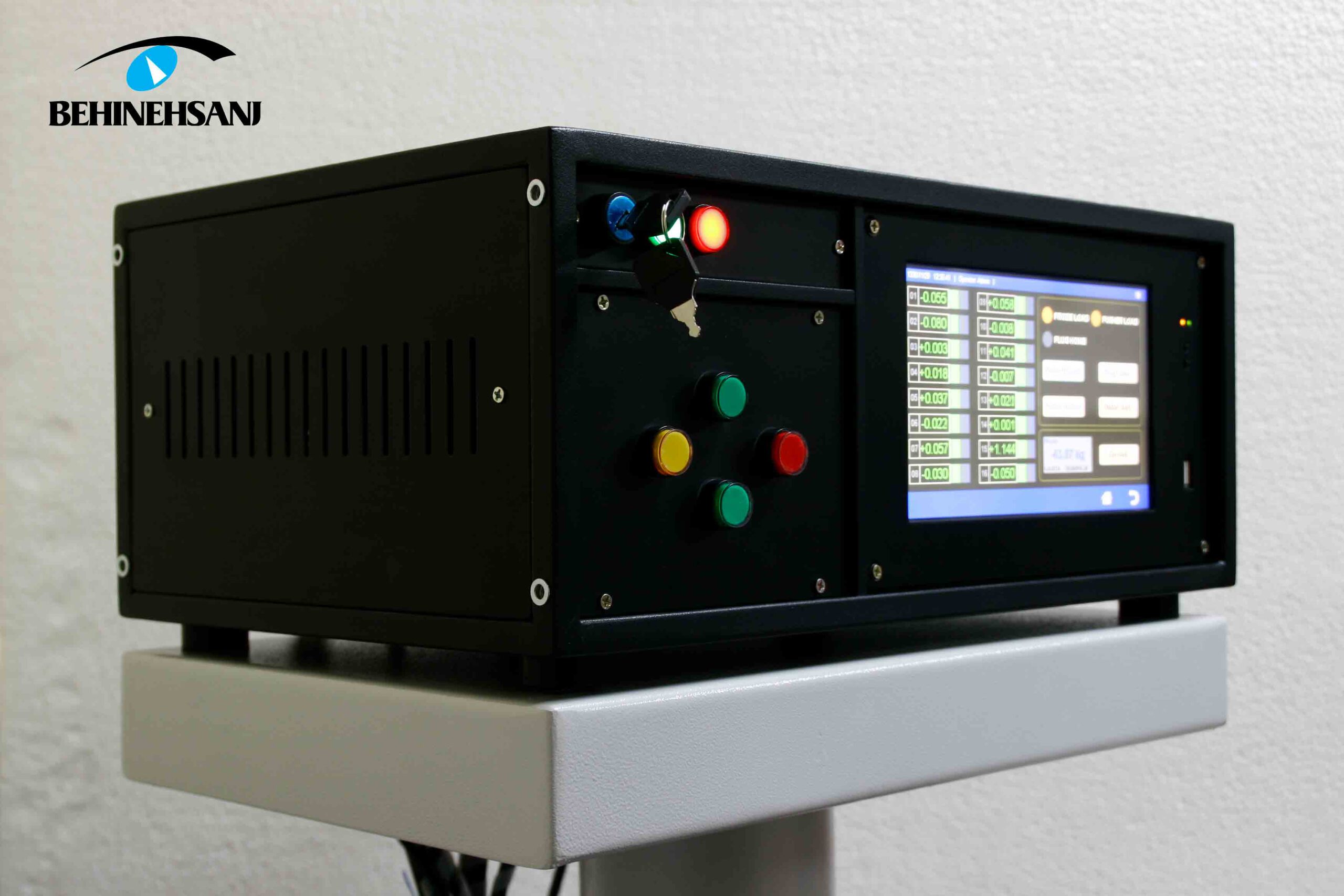

VS-series Technical Features:

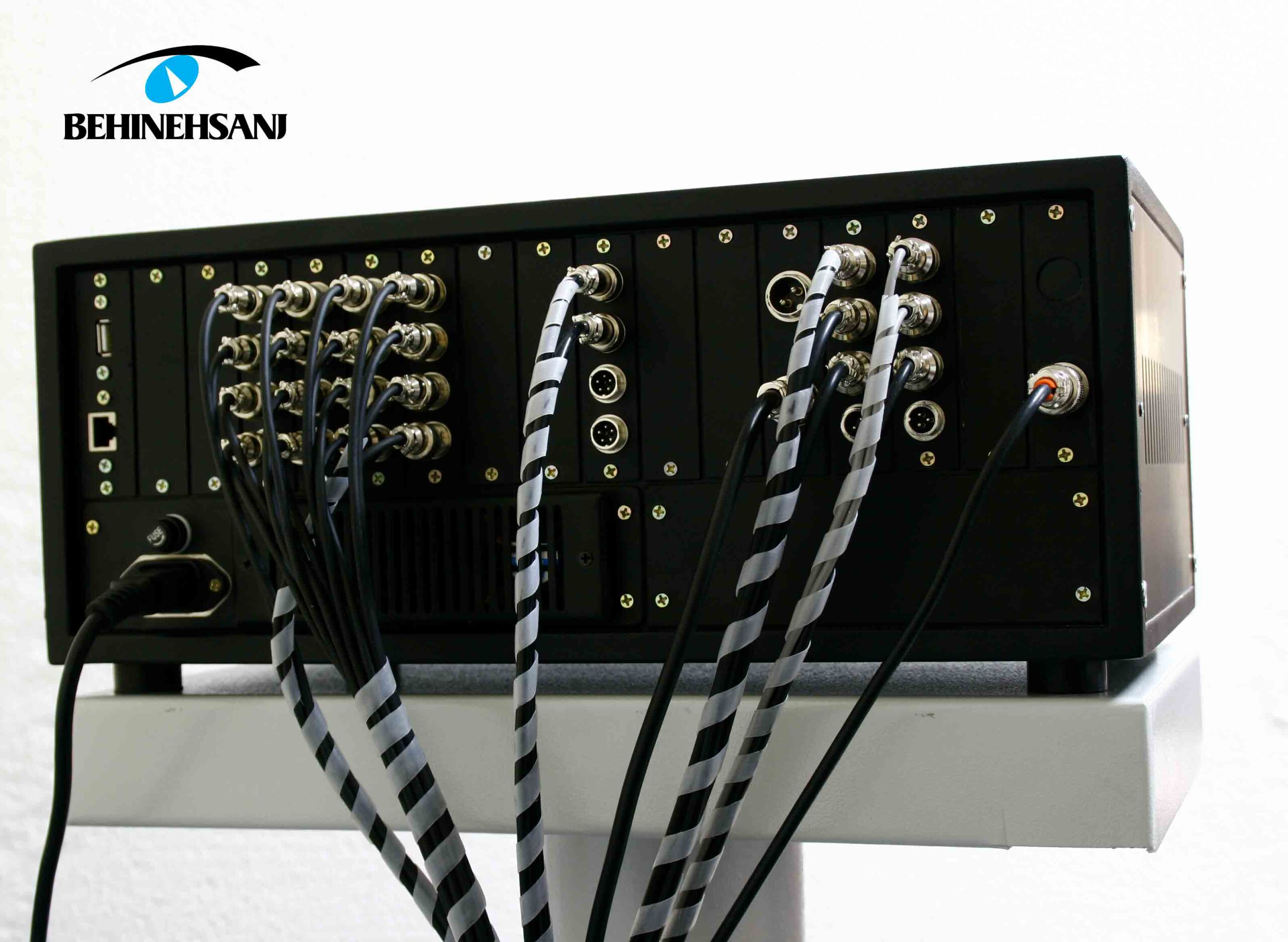

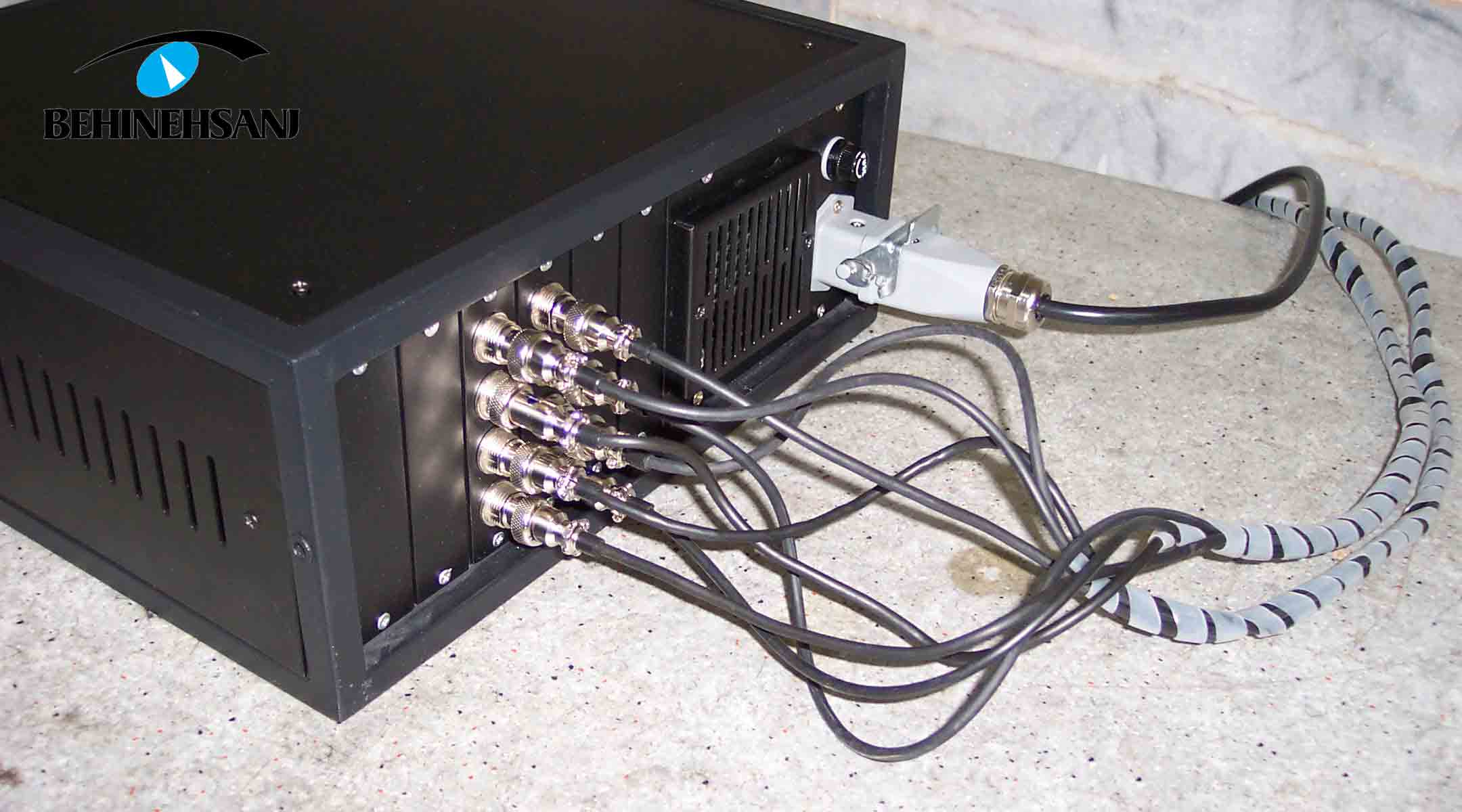

A wide range of digital readouts with a common platform are recently presented . This platform supports all dimensional measuring applications with LVDT transducers together with digital and analog inputs/outputs. Special desktop casing provides easy to install and has the best compatibility with industrial project requirements.

A TFT color touch screen as an HMI simplifies man-machine interface. A customized software environment provides all data entry requirements and shows all of output results and system events and errors as numeric or graphic reports.

  •  Arm-based cortex main processor
  •  16-bit resolution A/D for high speed sampling, i.e. 0.001mm and 0.0001mm resolution
  •  Compatible with all kinds of LVDT/HBT from different manufacturers
  •  Various dimensions of touch screen displays; 4.3”, 7” and 9”

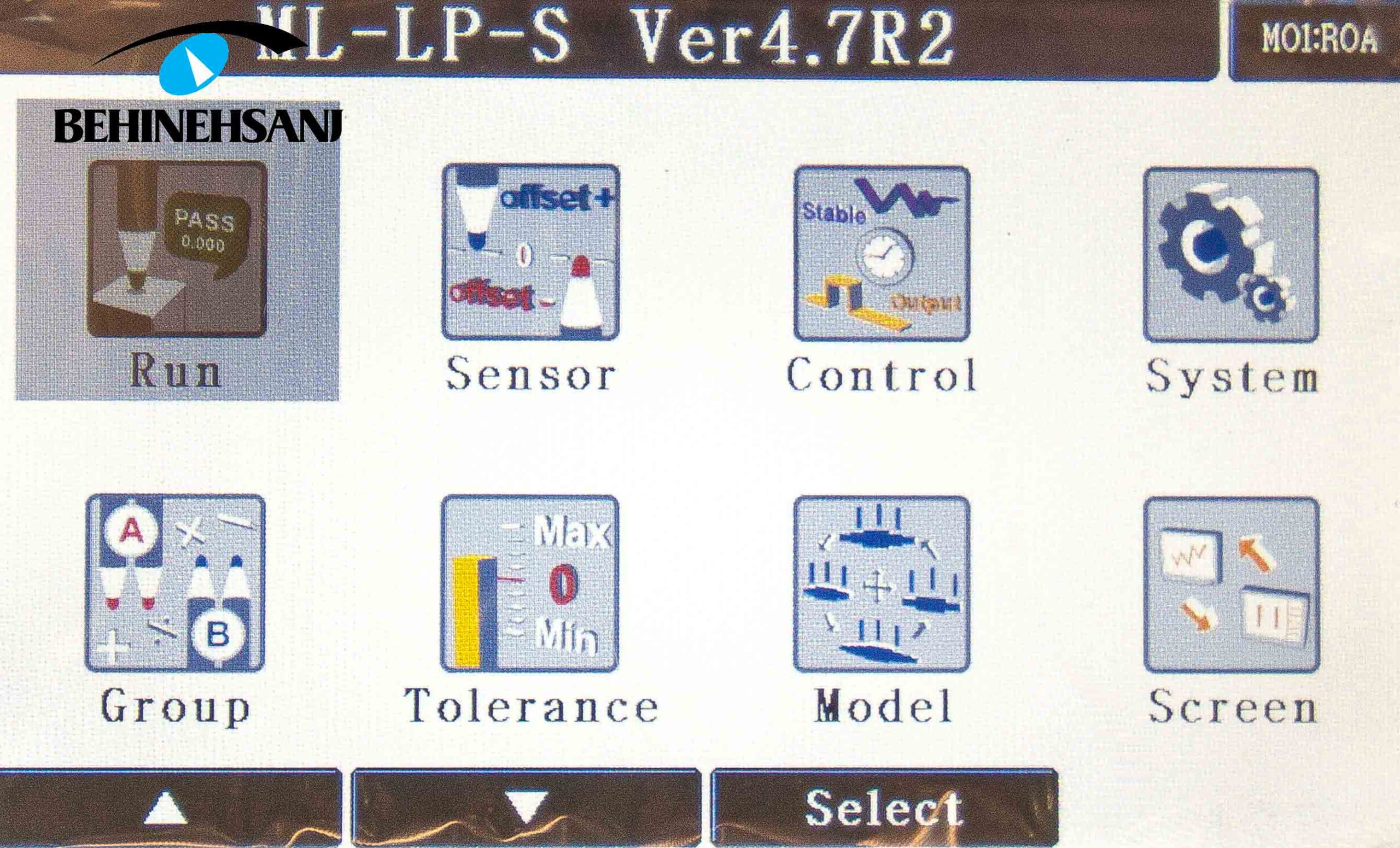

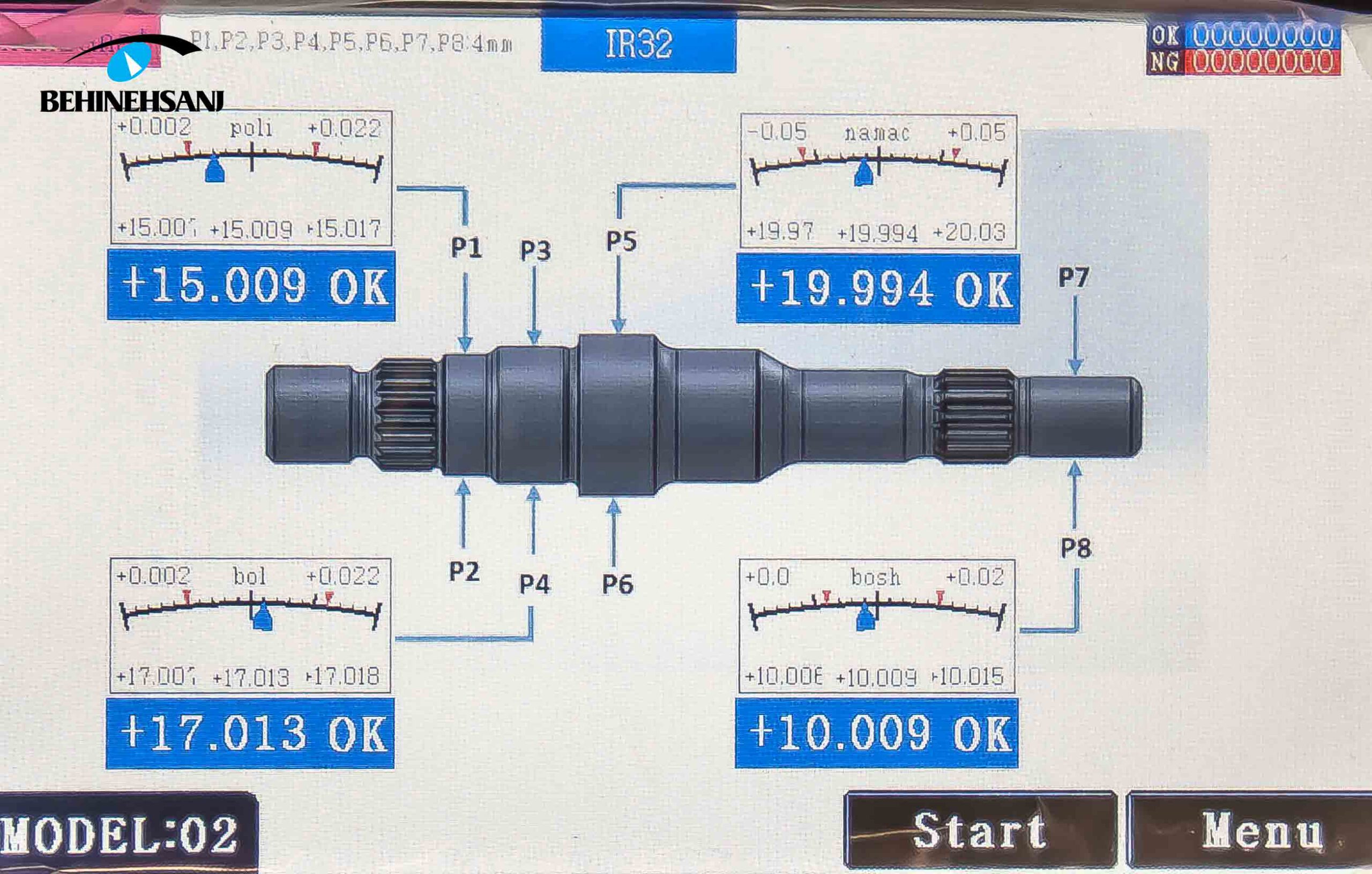

ML-LP Technical Features :

  •  7”touch screen TFT color display
  •  4, 8, 12 &16 input channels for half bridge LVDT(HBT) probes
  •  8 digital I/O
  •  User interface software for gauge configuration
  •  Multi-program storage capability
